How To Choose The Right Cooling Tower for Your Factory

In industrial production, cooling towers are essential equipment for managing heat loads. Choosing the right cooling tower is crucial for factory efficiency, energy consumption, water resource management, and equipment lifespan.
This guide—combined with the technical expertise of **Mach Cooling (official website: https://www.machcooling.com/)**—provides a systematic selection framework to help decision-makers make smarter design and procurement choices.

1. Understanding the Basic Types of Cooling Towers and Their Application Scenarios

Main Classifications of Cooling Towers

Before selecting a cooling tower, it is important to understand the major categories:

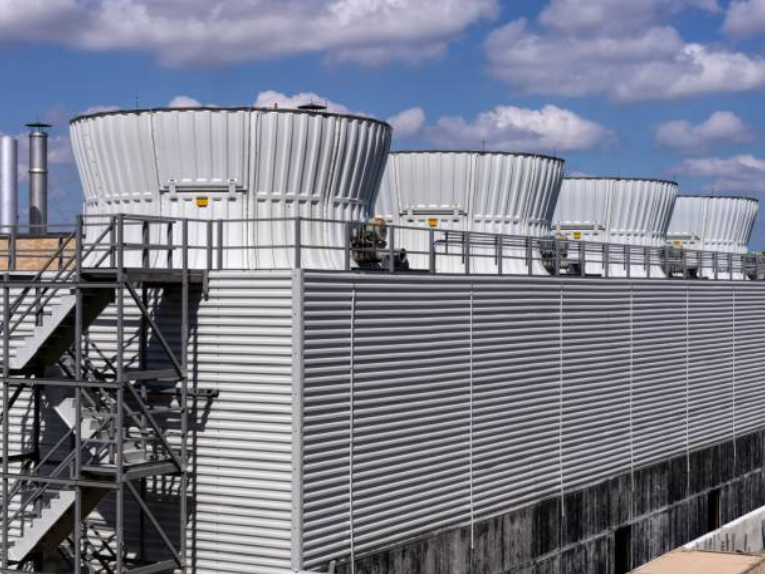

• Open Wet Cooling Tower
  The circulating water directly contacts the air, achieving high evaporation efficiency. This is the most commonly used type.

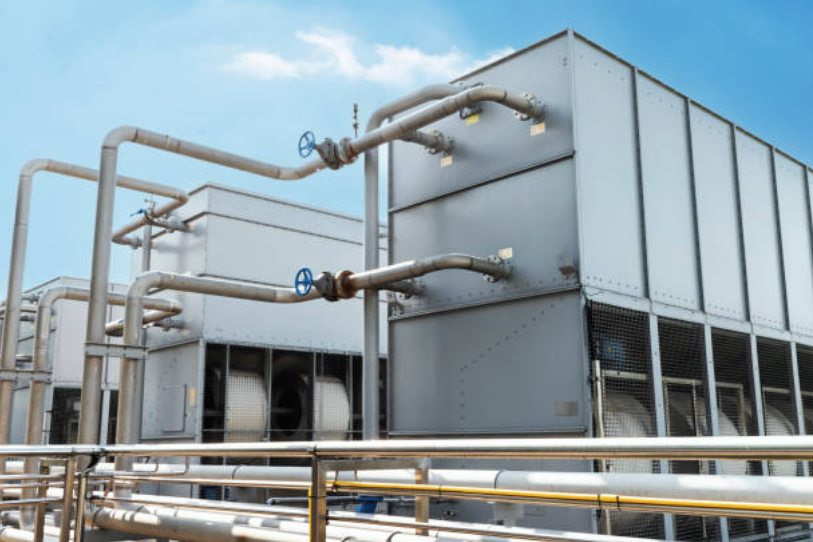

• Closed-Circuit Cooling Tower
  Circulating water flows through sealed coils and does not contact the air, offering better water quality protection.

• Ventilation Method

• Natural Draft – Driven by temperature-induced natural convection; simple structure and stable operation.

• Mechanical Draft (Forced / Induced) – Uses fans for airflow; delivers greater air volume and higher cooling efficiency.

• Flow Configuration

• Counter-Flow – Hot water flows downward; air moves upward.

• Cross-Flow – Hot water is sprayed downward; air enters from the sides.

Different types suit different industrial conditions, and selection should consider load requirements, site constraints, and maintenance needs.

 Why Choose Mach Cooling’s Towers?

• Mach Cooling offers fully customized cooling tower solutions tailored to heat load, water volume, water temperature, and climate (e.g., wet-bulb temperature).

• They provide a full range of tower types (open/closed; counter-flow/cross-flow), suitable for various industries.

• High-performance FRP (fiberglass) structure ensures corrosion resistance and easy maintenance.

• Supports smart control systems such as variable-frequency fans/pumps and integrated water treatment.




2. Key Parameters You Must Define Before Selecting a Cooling Tower

Cooling Load

• Definition: The total heat that must be removed from systems such as compressors, chillers, or heat exchangers.

• Estimation: Based on equipment power, efficiency, and heat conversion rate (e.g., 80–90% of an air compressor’s power becomes heat).

• Importance: If cooling capacity is insufficient, water temperature rises, causing equipment failures and energy waste.

Circulating Water Flow Rate and Temperature Difference

• Flow Rate: The volume of water passing through the cooling tower per hour (m³/h).

• ΔT (Temperature Difference): Difference between hot water inlet and cold water outlet.

• Importance:

• Insufficient flow = inadequate heat removal

• Too small ΔT = wasted tower capacity

Wet-Bulb Temperature & Approach

• Wet-Bulb Temperature: The environmental limit for cooling tower performance; cold water temperature cannot go below it.

• Approach: Difference between cold water outlet temperature and ambient wet-bulb temperature.
  Smaller approach = higher efficiency.

• Select according to local climate and cooling requirements.

Water Quality Conditions

• Poor water quality (hardness, impurities, microorganisms) affects nozzles, fill, and pipes.

• Required water treatment may include make-up, blowdown, filtration, softening, and biocide control.

• Drift eliminators reduce water loss and improve water efficiency.

Structure & Materials

• Common materials: FRP, steel, concrete.

• Must consider durability, foundation load, corrosion resistance, and ease of maintenance.

 Fan & Ventilation Design

• Choose mechanical or natural ventilation based on performance needs.

• Consider fan power, motor efficiency, and whether VFD (variable-frequency drive) is required.

• Large fans cost more but offer better airflow and cooling stability.

3. Practical Selection Guide: From Theory to Application

Step 1: Define Cooling Requirements and Boundary Conditions

1. Calculate total heat load from all factory systems.

2. Gather local climate data (wet-bulb temperature, humidity, seasonal variations).

3. Evaluate available space, foundation strength, and water supply.

4. Determine maintenance capabilities (cleaning frequency, water treatment, downtime).

Step 2: Preliminary Matching of Tower Specifications

• Compute required water flow based on heat load and ΔT.

• Determine expected cold water temperature using wet-bulb temperature and approach.

• Choose ventilation type (natural/mechanical) and whether VFD is needed.

• Select structural material—Mach Cooling’s FRP is a common choice for durability.

Step 3: Request Custom Design from Mach Cooling

• Provide all parameters (load, flow, wet-bulb temp, space limits, etc.) for engineering analysis.

• Mach Cooling will recommend tower configuration, materials, fill type, and fan selection.

• Request performance curves (temperature vs. flow, air volume) to validate the design.

Step 4: Compare Solutions and Conduct Site Assessment

• Compare Mach Cooling’s design with other available systems.

• Evaluate tower dimensions, weight, foundation requirements, and installation complexity.

• Assess ease of nozzle/fill cleaning, drift control, and water distribution.

Step 5: Cost & Operational Analysis

• Initial Cost: Tower body, fan, pump, water treatment, foundation.

• Operating Cost: Electricity (fans/pumps), water consumption, maintenance.

• Energy Saving Options:

• VFD control

• Smart monitoring

• Optimized water treatment

• TCO (Total Cost of Ownership): Evaluate long-term efficiency and service life.

4. Common Mistakes and Selection Recommendations

 Mistake 1: “Bigger Is Better”

Oversizing leads to unnecessary cost and inefficiency. Accurate calculations are essential.

Mistake 2: Ignoring Water Quality

Poor water quality causes clogging, corrosion, and reduced efficiency—often leading to higher long-term costs.

 Mistake 3: Only Considering Initial Price

Low-cost units may use inferior materials, resulting in corrosion, higher energy consumption, and frequent repairs.

 Recommendation: Build a Long-Term Partnership with Manufacturers

Manufacturers like Mach Cooling provide:

• Scheduled maintenance

• Performance evaluation and optimization

• Upgrade services (VFD, smart control)

5. Example Cooling Tower Selection Parameter Table

6. Conclusion

• Cooling tower selection is a systematic process involving heat load, water flow, wet-bulb temperature, water quality, and material selection.

• Working with professional manufacturers like Mach Cooling ensures customized, efficient, and maintainable solutions.

• A clear understanding of investment, operational costs, and maintenance helps achieve long-term energy savings.

• Avoid common mistakes such as oversizing, ignoring water quality, or choosing low-cost but low-quality equipment.
