How To Choose The Right Cooling Tower Screens

Introduction

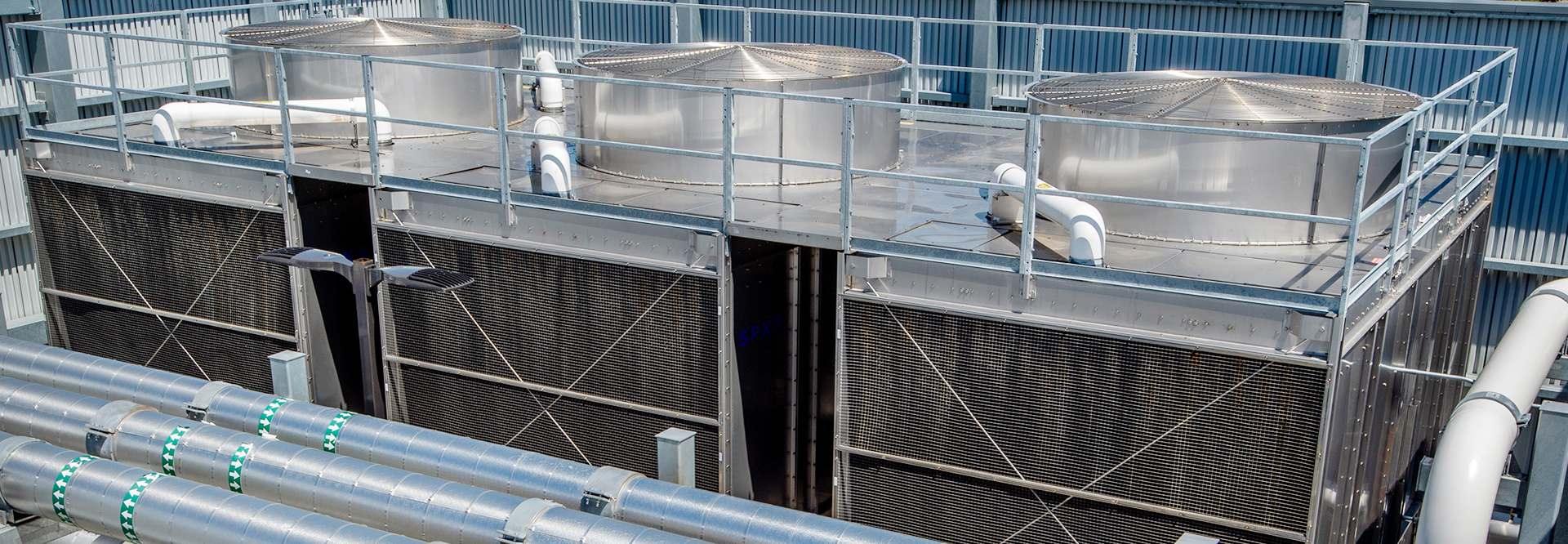

Cooling towers play a crucial role in industrial, HVAC, and process cooling systems. Their efficiency and reliability directly impact the stable operation of the system. Cooling tower screens are key components that protect the circulating water system and prevent debris from entering the tower.

Choosing the right screen not only extends equipment life but also reduces maintenance costs and improves water circulation efficiency. This article explains screen types, materials, design requirements, installation considerations, and provides examples and tables, with practical reference using Mach Cooling towers.

 Role and Importance of Cooling Tower Screens

2.1 Main Functions of Screens

Cooling tower screens serve the following purposes:

1. Block debris — Prevent leaves, dust, insects, and other foreign materials from entering the circulating water system.

2. Protect pumps and piping — Avoid clogging of circulation pumps, valves, and spray systems.

3. Improve water quality and efficiency — Reduce clogging or corrosion of fill material, maintaining heat exchange efficiency.

4. Lower maintenance costs — Reduce cleaning frequency and operational workload.

2.2 Effect of Screens on System Efficiency

• Blocking large particles prevents fill blockage and ensures uniform water distribution.

• Protecting pumps ensures stable operation.

• Reducing blowdown and cleaning frequency lowers operational costs.




Types and Material Selection of Cooling Tower Screens

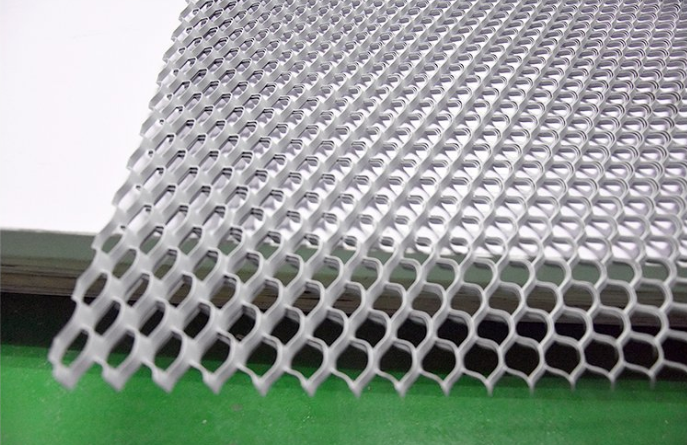

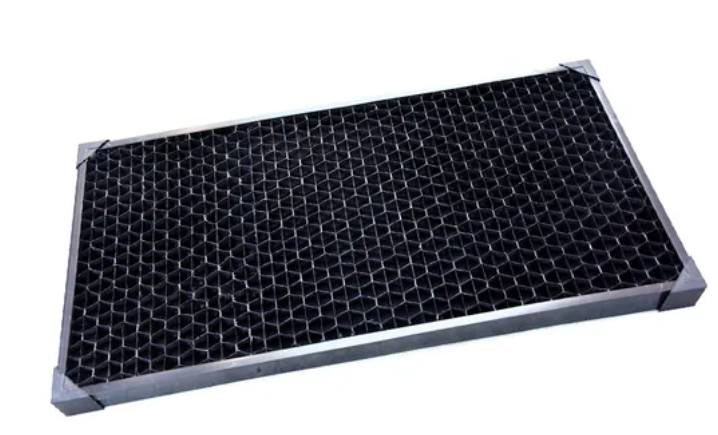

2.3 Screen Types

Common cooling tower screen types based on filtration precision and installation location include:

1. Coarse Screens

• Filter large debris such as leaves, plastic, and branches.

• Mesh size: typically 3–10 mm.

2. Fine Screens

• Filter small particles, sand, and dust.

• Mesh size: typically 0.5–2 mm.

3. Full-Cover Protection Screens

• Prevent insects or small animals from entering the tower, usually installed at the top or air intake.

 2.4 Screen Material Selection

Common materials for cooling tower screens include:

Selection principle: Choose based on water quality, humidity, chemical exposure, and budget.

Screen Design and Installation Considerations

3.1 Mesh Size Selection

• Coarse screens block 3–10 mm particles to prevent pump clogging.

• Fine screens block 0.5–2 mm particles to prevent fill blockage.

• Too small mesh → frequent clogging and cleaning.

• Too large mesh → debris enters system, shortening equipment life.

3.2 Installation Location and Orientation

• Tower top / air intake → block large debris and insects.

• Circulation water inlet → protect pumps and piping.

• Return water outlet → prevent tank or spray system contamination.

3.3 Installation and Maintenance

• Screens should be easy to remove and clean.

• Ensure the screen is flat, intact, and securely fixed.

• Regularly check for clogging and remove debris promptly.




Comprehensive Factors for Choosing Screens

 4.1 Water Quality and Debris Type

• Particle size, sediment content, and debris type determine mesh size and material.

 4.2 System Load

• High-flow systems → require screens resistant to pressure and water impact.

• Large industrial towers → consider full-coverage protection and multi-stage filtration.

4.3 Cost and Lifespan

• Stainless steel → long lifespan, higher cost.

• Plastic or galvanized steel → lower cost, higher maintenance frequency.

 4.4 Compatibility with Mach Cooling Towers

• Mach Cooling provides customized screen solutions based on water quality, tower type, and flow.

• Proper selection reduces maintenance costs, improves tower efficiency, and extends equipment life.

Screen Selection Record Table Template

Conclusion

Selecting the right cooling tower screen is essential for efficient and stable operation of Mach Cooling towers (https://www.machcooling.com/):

• Clear function → coarse screens block large particles, fine screens block small particles.

• Appropriate material → choose corrosion-resistant and durable materials based on water quality and environment.

• Installation and maintenance → easy to clean, regularly checked, extending service life.

Scientific screen selection and management reduce maintenance costs, improve tower efficiency, and ensure long-term stable system operation.
