Product Description
The square counter-flow cooling tower is an advanced, energy-efficient solution designed for sewage water treatment in industrial and commercial applications. Utilizing countercurrent contact between water and air, it facilitates efficient heat exchange through a specialized packing layer. Key features include high cooling efficiency, low noise levels, energy savings, and exceptional durability. The tower incorporates advanced materials like trapezoidal wave packing and wing fans to ensure optimal thermal performance and reduced energy consumption. With low maintenance costs and easy upkeep, this cooling tower is ideal for industries requiring robust sewage water cooling solutions.
Mach Cooling offers a wide range of cooling equipment, including closed-circuit cooling towers, open cooling towers, air coolers, and industrial water tanks. We also provide cooling tower components such as packing, fans, motors, and reducers, as well as maintenance and renovation services. Our products serve industries like high-speed railways, precision air conditioning, metallurgy, oil and power, chemical, pharmaceutical, and heat treatment sectors.
Compact and modern, the cooling tower integrates seamlessly with contemporary architecture, offering flexible installation options across various tower positions.
Optimized steam-water matching ensures full heat exchange, meeting global advanced standards for cooling efficiency.
Constructed with high-strength FRP materials, the tower resists aging, corrosion, deformation, and fading, withstanding Richter 8 earthquakes, 12-level typhoons, and heavy snow loads.
Equipped with specialized motors and fans, the tower uses noise-elimination technology to achieve industry-leading low noise levels.
Energy-efficient motors save up to 30% power, with internal circulation reducing operational costs significantly.
High-efficiency water collectors minimize water drift to less than 0.01%, enhancing environmental sustainability.
Steel supports with dual zinc and anti-corrosion coatings ensure long-term durability and extended service life.
PP sewage grid packing with high porosity enhances water-biofilm contact, improving pollutant removal efficiency.
Grid packing design prevents microbial buildup, ensuring smooth operation and low maintenance costs.
Tower StructureThe hot-dip galvanized steel frame resists corrosion and aging, withstanding typhoons and earthquakes. Upgrade options include 304 or 316 stainless steel. The tower features a fan system at the top and a water collection tray at the bottom for efficient water distribution and storage. |  |

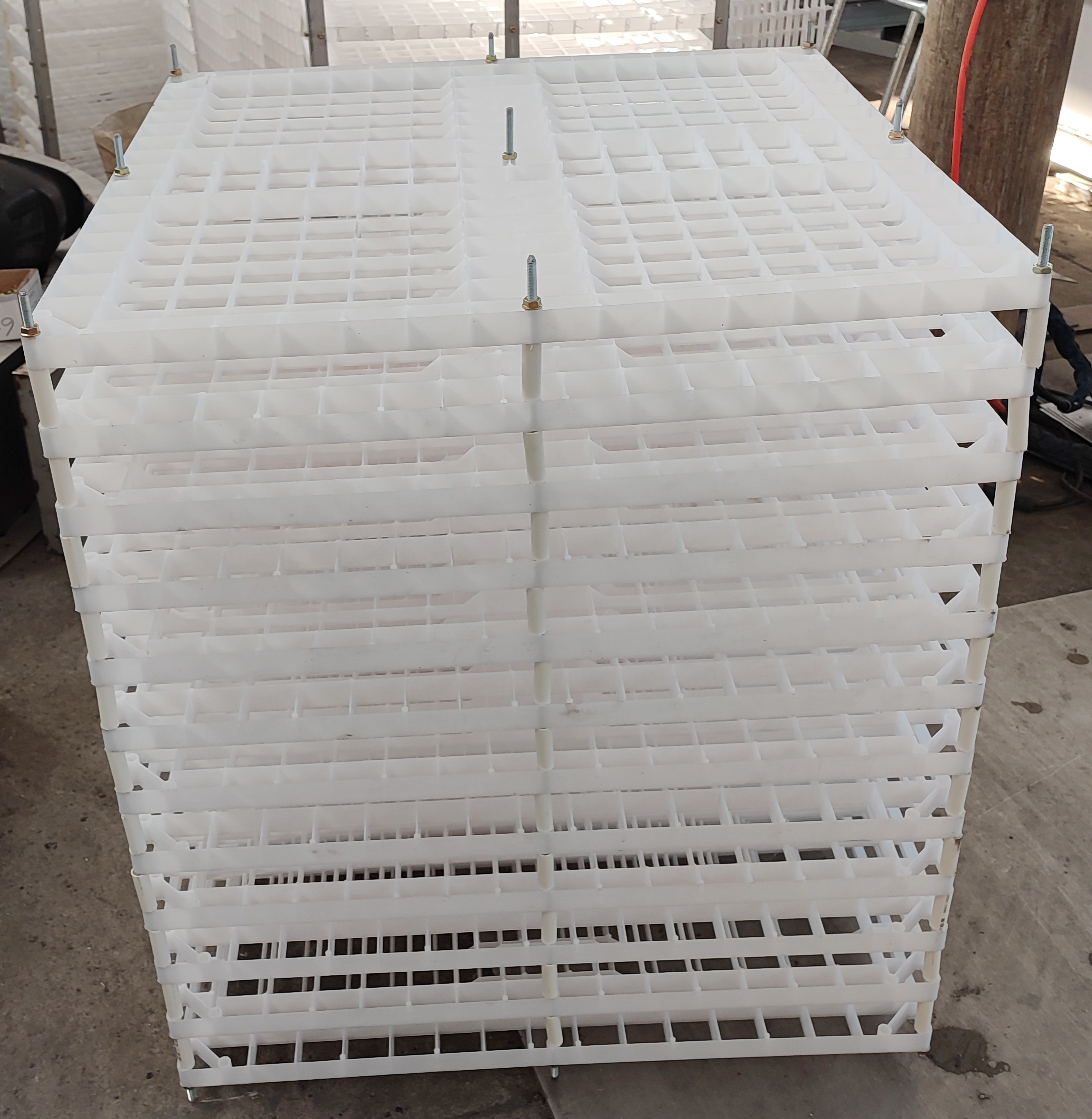

 | Filler SystemPP sewage fillers offer high surface area for microbial attachment, corrosion resistance, and anti-clogging design. They ensure long-term stability, low maintenance, and enhanced pollutant degradation with optimized hydraulic performance. |
Water Distribution SystemFeatures pool-type distribution or gravity nozzles for even spraying at low pressure, using corrosion-resistant galvanized steel or ABS materials for extended durability. |  |
 | Water Collecting DeviceInverted "N" shaped or Evapco eliminators reduce water loss to less than 0.01%, enhancing efficiency and environmental protection. |
Fan and Drive AssemblyLow-speed aluminum alloy fans with gear reducers ensure smooth, quiet operation (below 60 dB). Compatible with Siemens or WEG motors, offering up to 50% energy savings. |  |
| Model | Water Flow Rate (m³/h) | Dimensions (A mm) | Dimensions (B mm) | Height (H mm) | Fan (mm) | Motor (KW) | Pressure (kPa) | Dry Weight (kg) | Operating Weight (kg) | Noise (dB) Low | Noise (dB) 16m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AFK-50 | 50 | 2060 | 2060 | 3650 | 1200 | 1.5KW | 23 | 463 | 900 | 30 | 26 |
| AFK-60 | 60 | 2260 | 2260 | 3650 | 1200 | 1.5KW | 28 | 555 | 1080 | 35 | 32 |
| AFK-80 | 80 | 2400 | 2400 | 3850 | 1600 | 2.2KW | 37 | 740 | 1440 | 47 | 42 |
| AFK-100 | 100 | 2800 | 2800 | 4050 | 1800 | 4KW | 38 | 1020 | 1810 | 48 | 43 |
| AFK-125 | 125 | 3020 | 3020 | 4050 | 1800 | 4KW | 38 | 1270 | 2230 | 49 | 44 |
| AFK-150 | 150 | 3260 | 3260 | 4050 | 2000 | 5.5KW | 39 | 1530 | 2700 | 50 | 45 |
| AFK-200 | 200 | 3620 | 3620 | 4760 | 2800 | 7.5KW | 42 | 2040 | 3670 | 52 | 47 |
| AFK-250 | 250 | 4120 | 4120 | 4860 | 2800 | 7.5KW | 44 | 2398 | 4240 | 54.5 | 49.5 |
| AFK-300 | 300 | 4510 | 4510 | 5160 | 3400 | 11KW | 45 | 3760 | 6290 | 55 | 50 |
| AFK-400 | 400 | 5260 | 5260 | 5300 | 4200 | 15KW | 49 | 5800 | 9200 | 57.5 | 52.5 |
| AFK-500 | 500 | 5760 | 5760 | 5450 | 4600 | 22KW | 50 | 6480 | 9600 | 58.5 | 53.5 |
| AFK-600 | 600 | 6260 | 6260 | 5450 | 4600 | 22KW | 52 | 7760 | 12780 | 60.5 | 55.5 |
Our sewage cooling towers are ideal for industries such as steel, chemical, electric power, food processing, pharmaceuticals, textiles, and construction, effectively managing heat in various industrial wastewater streams.
Select a well-ventilated site free from heat sources or obstructions.
Ensure the site supports the cooling tower's weight and adheres to foundation specifications (±5mm elevation error).
Maintain adequate spacing between towers or buildings (at least one tower diameter; more for ultra-low noise models).
Design pool depth, outlet, and discharge pipes based on specific requirements if constructing independently.
Hydraulic pumps and control boxes are optional add-ons, available for purchase.
Avoid open flames or welding near the tower; take precautions if necessary.
Before operation, verify secure foundation connections, lubricate components, and check wiring.
Assign professional operators for regular inspections and maintenance logging.
Cover the tower with a tarpaulin during extended downtime to protect components.
Sewage cooling towers are engineered for wastewater treatment, featuring enhanced corrosion resistance and anti-clogging capabilities. Their components, such as PP fillers, are designed to handle the chemical properties and impurities in sewage, ensuring easy maintenance.
These towers offer high cooling efficiency, dependent on design, packing type, fan performance, and environmental conditions. Optimized designs ensure superior cooling for sewage applications.
Maintenance costs can be higher due to impurities in sewage causing blockages or corrosion. Regular cleaning and using corrosion-resistant materials can significantly reduce costs.
With proper maintenance, the service life of an open counter-flow cooling tower for sewage typically ranges from 10 to 15 years. Harsh environments or poor maintenance may reduce this lifespan.
Modern designs keep noise levels below 70 dB, with low-noise fans and soundproofing options available for stricter requirements.
Installation requires a stable foundation, proper ventilation, and sufficient spacing for heat dissipation and maintenance. Correctly sized inlet/outlet pipes are essential.
Packing should be inspected annually and replaced as needed to prevent clogging and maintain cooling efficiency.
Costs include electricity and water replenishment. Efficient fans and pumps, along with optimized water use, can lower expenses.
Regular cleaning, high-quality anti-clogging fillers, and inlet filters can effectively prevent blockages.
These towers are suitable for sewage treatment plants, chemical plants, paper mills, printing and dyeing plants, and other industries handling high-temperature, impurity-laden wastewater.
