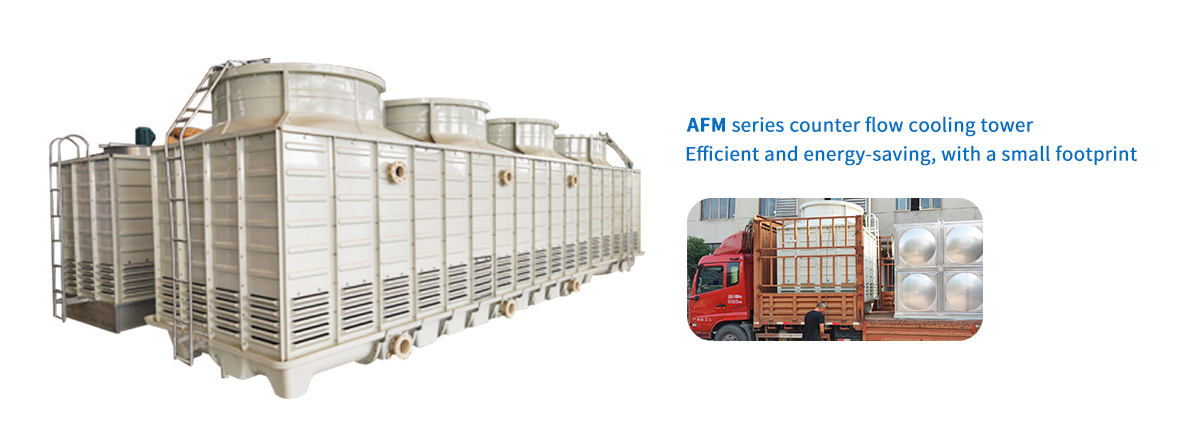

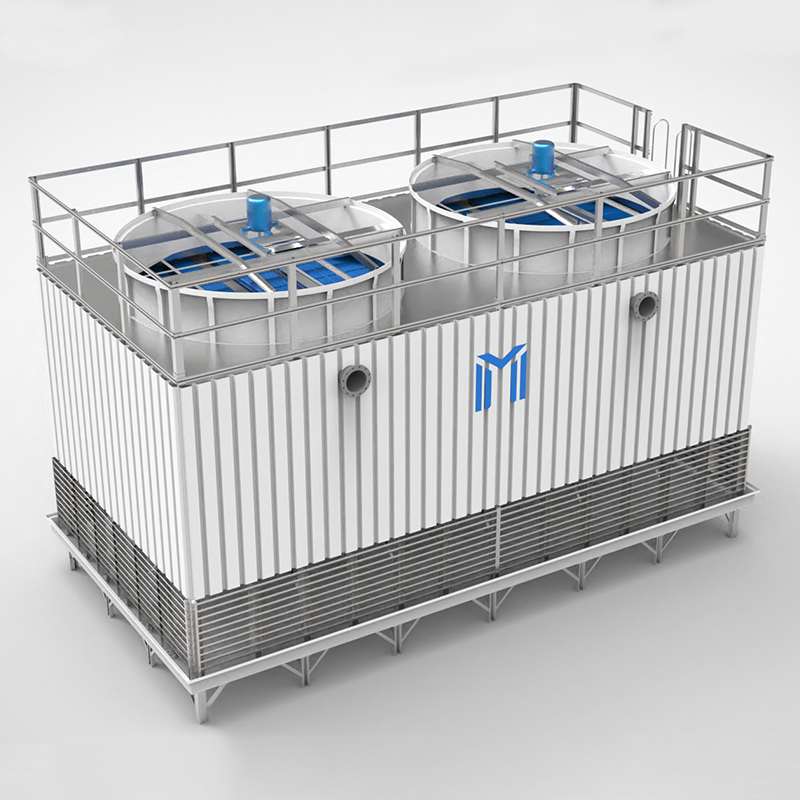

Square Counter Flow Cooling Tower

Square Counter Flow Cooling Tower Description

The square shape refers to the external structure of the tower, offering a compact footprint and allowing for modular installation. This design is particularly efficient in maximizing heat exchange between the water and air, leading to better cooling performance in a relatively small space.

Square Counter Flow Cooling Tower Working Principle

The square modular combined cooling tower uses a fan to extract air from the tower, creating negative pressure that allows sufficient contact between the air and circulating water. Through evaporative heat exchange, the water temperature is reduced. Hot water is evenly distributed onto the fill material from the top through a spray system. As air flows upward from the bottom, it exchanges heat with the water. The cooled water then falls into the basin and is recirculated for continued use.

Square Counter Flow Cooling Tower Main Features

1. Modular Design Uses standard modular units that can be freely combined according to actual needs, making transportation, installation, and expansion more convenient.Suitable for large-scale cooling systems, easy to maintain, and reduces overall footprint.

2. High-Efficiency Heat Exchange Performance

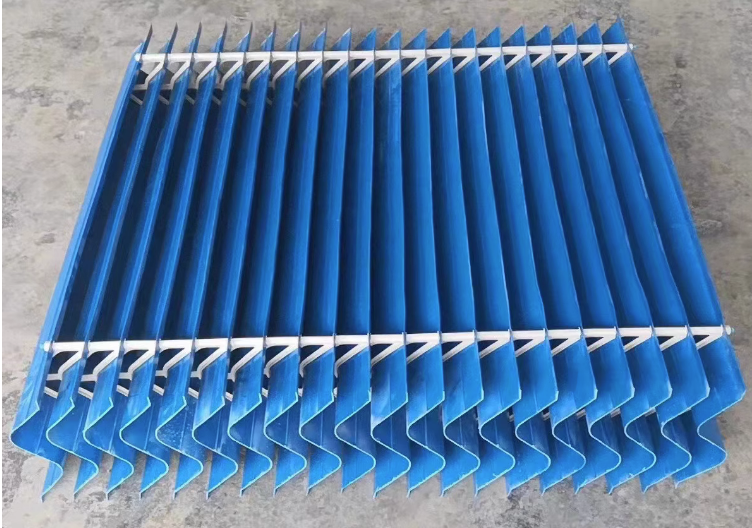

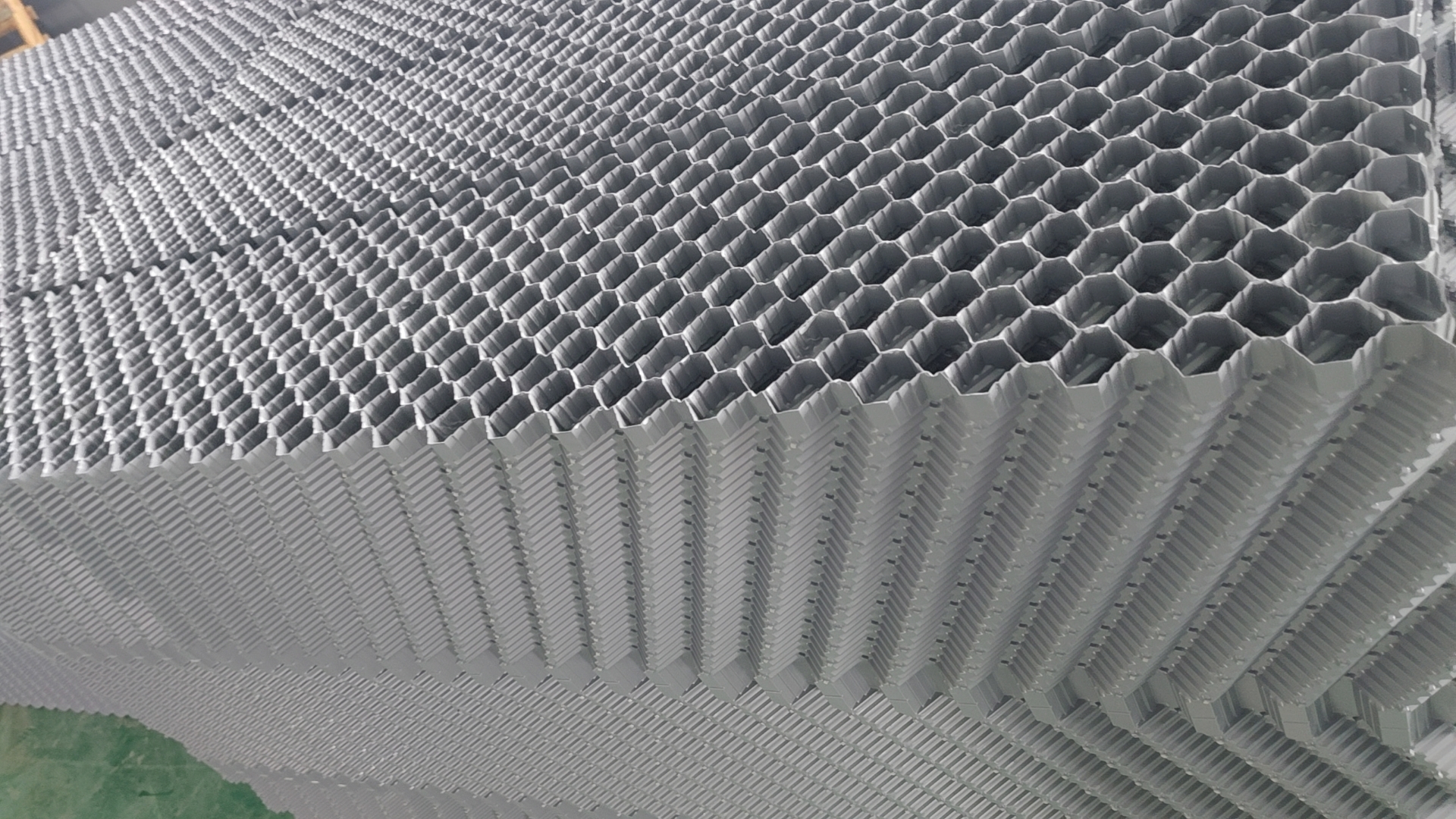

3. Adopts high-performance fill media to improve heat exchange efficiency and enhance cooling effectiveness.Optimized water and airflow design reduces resistance and improves energy efficiency.

4. Energy-Saving and Environmentally Friendly Low-noise fans and energy-efficient motors reduce energy consumption.Optimized water circulation system minimizes water loss and reduces drift and splashing.

5. Durable and Sturdy Structure The tower body is typically made of corrosion-resistant materials such as galvanized steel, stainless steel, or FRP (fiberglass-reinforced plastic), ensuring a long service life.Well-engineered structural design provides excellent wind and seismic resistance.

6. Easy Maintenance and Management Modular assembly design allows for easy maintenance.Well-positioned inlet/outlet and inspection ports facilitate cleaning and servicing.

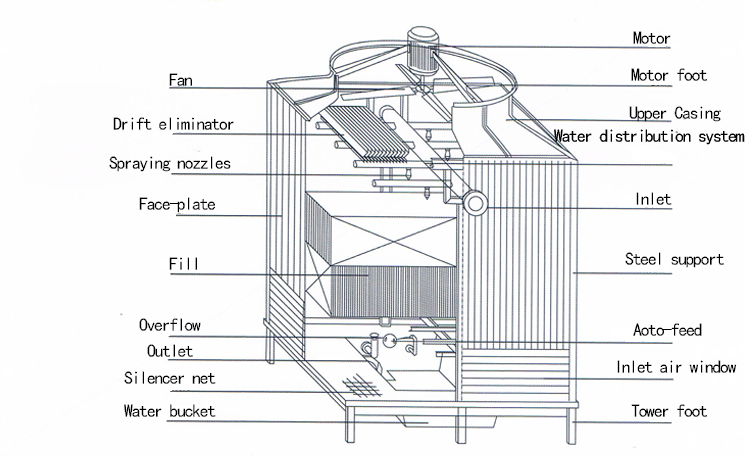

Square Counter Flow Cooling Tower Main Parts

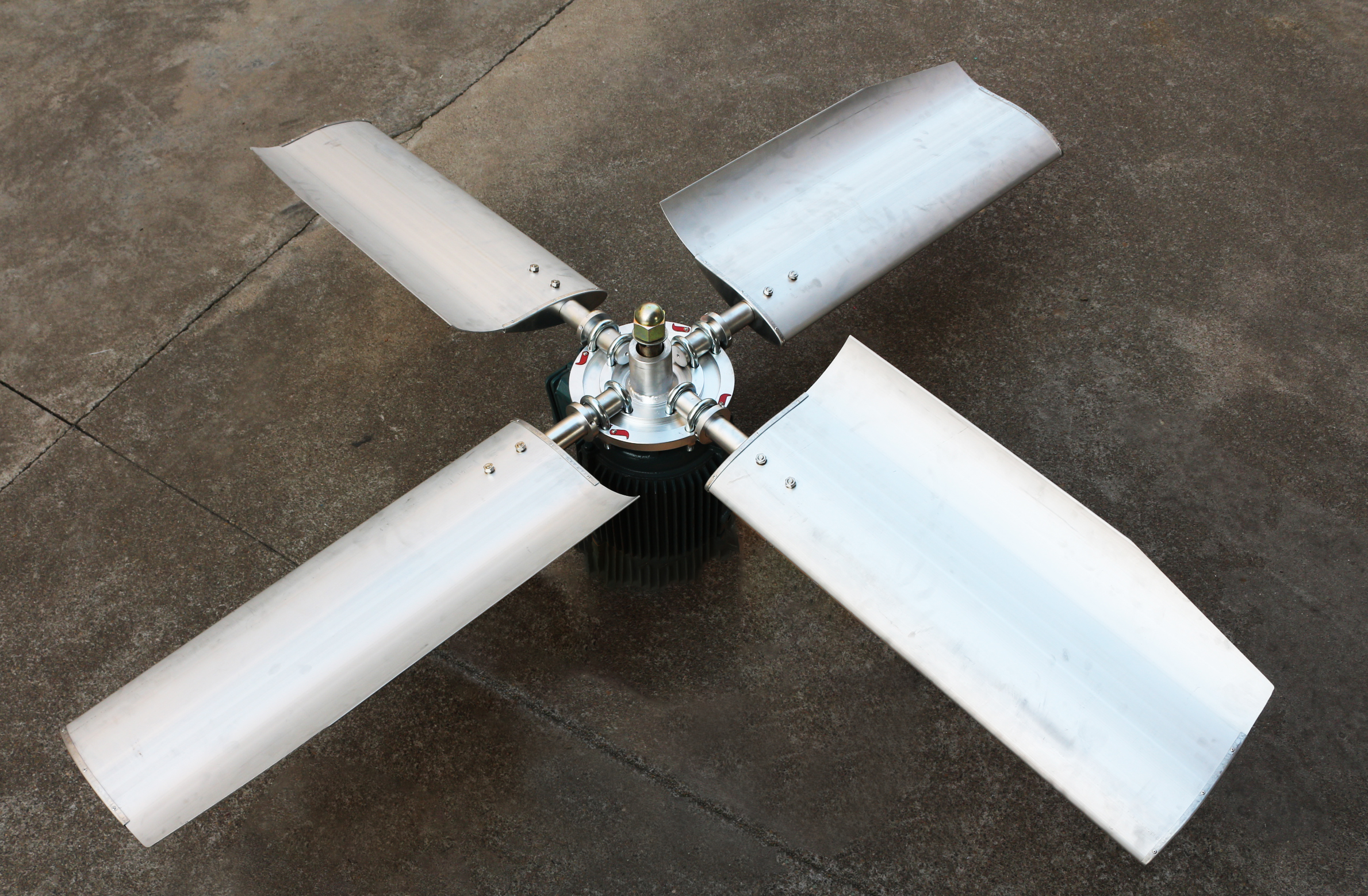

Fan Aluminum alloy fan blades for cooling towers are a type of fan blade commonly used in cooling towers. It is mainly used to introduce or discharge air into cooling towers, thereby improving heat dissipation efficiency and maintaining the normal operation of equipment.Using high-strength aluminum alloy, it has good corrosion resistance, weather resistance, and mechanical strength.

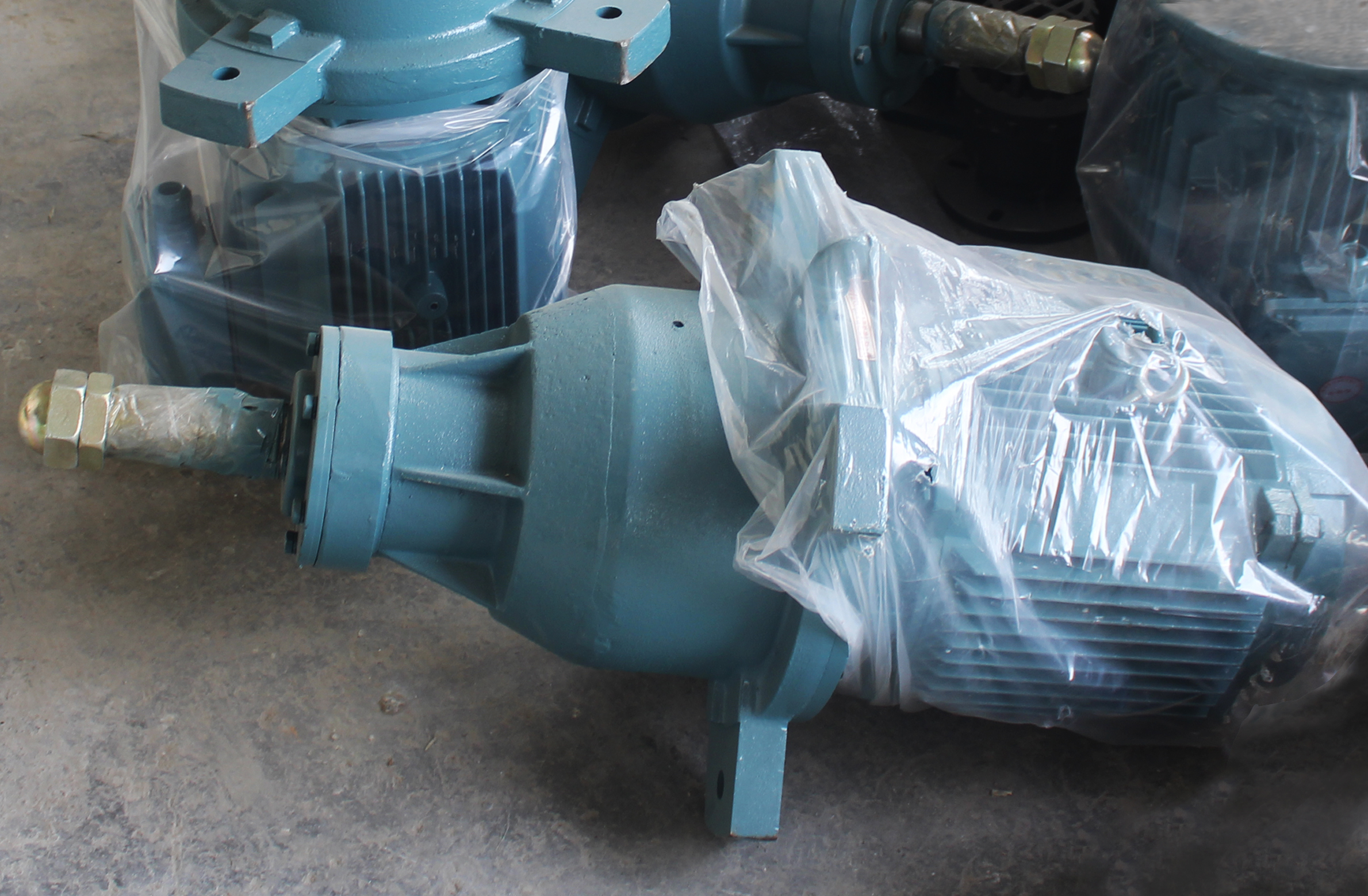

Gear Reducer Cooling tower gear reducer is a transmission device specifically designed for the drive system of cooling tower fans.Its main function is to convert the high-speed rotation of the motor into the low-speed high torque output required by the fan, in order to improve energy efficiency, reduce noise, and ensure long-term stable operation of the fan.

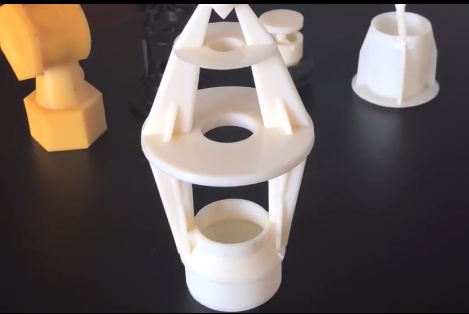

Nozzle The cooling tower nozzle is one of the key components in the cooling tower, mainly used to evenly distribute circulating water to the packing layer, increase the contact area between water and air, enhance the heat exchange effect, and achieve efficient cooling. The design of the nozzle directly affects the cooling efficiency, water flow uniformity, and operational stability of the cooling tower.

Square Counter Flow Cooling Tower Prameter

Square Counter Flow Cooling Tower Application

Square counter flow cooling tower is widely used in many fields. The following are its main application fields: industrial field, petrochemical industry, metallurgical industry, electric power industry, commercial building, air conditioning system: data center, refrigeration industry, food processing, pharmaceutical industry, environmental protection field. In addition, the square counter flow cooling tower is also widely used in the large water circulation system of petroleum, chemical industry, metallurgy, power generation and other enterprises.

Square Counter Flow Cooling Tower Certificate

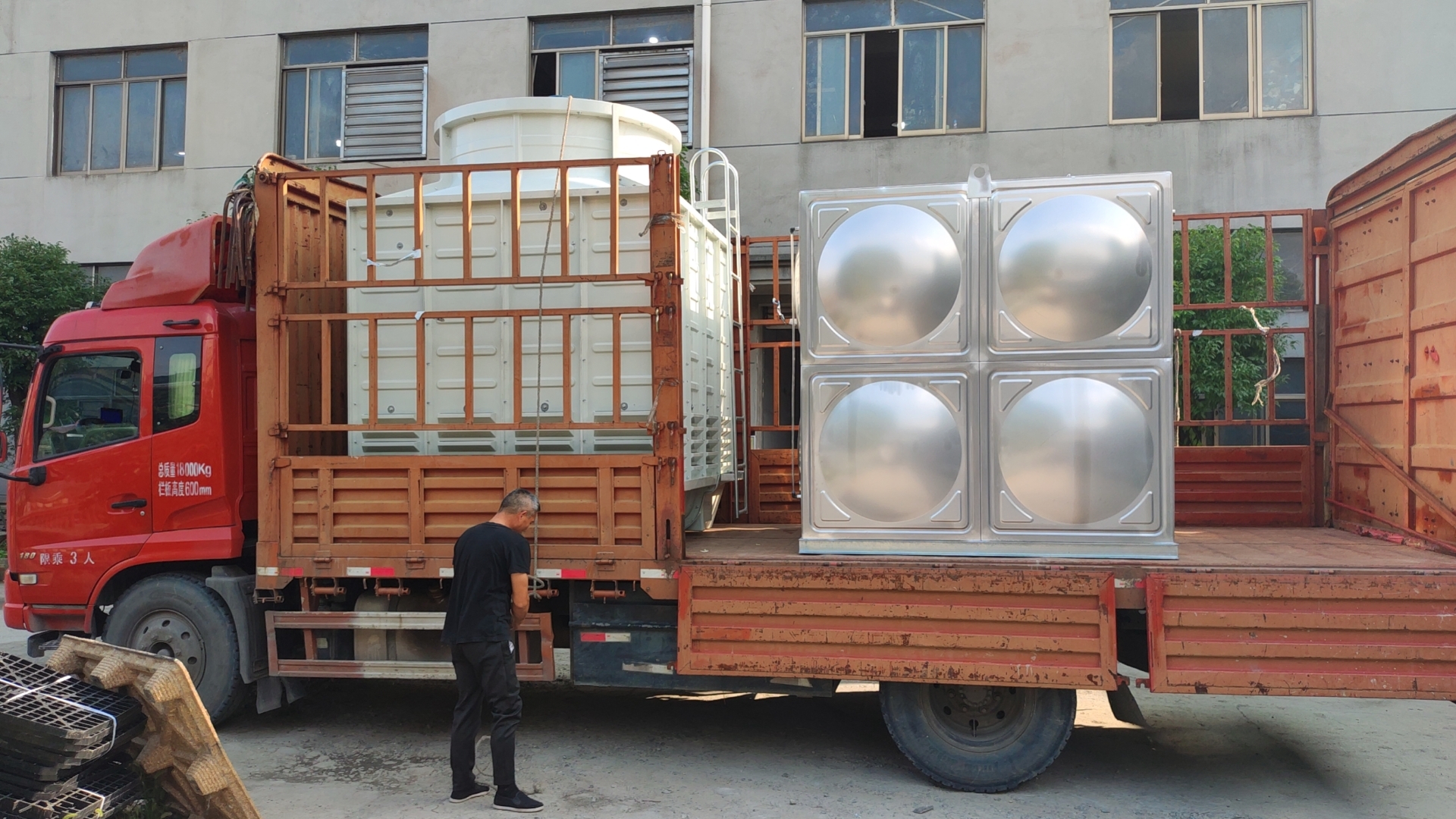

Square Counter Flow Cooling Tower Factory Show

Square Counter Flow Cooling Tower FAQ

Q: What is a square counter flow cooling tower?

A: A square counter flow cooling tower is a type of mechanical draft cooling tower where hot water flows downward and air moves upward in the opposite direction (counter flow). Its square-shaped structure allows for efficient space usage and modular installations.

Q: How does it work?

A: Hot water enters at the top.Water is distributed over fill media to increase surface area.Air is drawn upward (usually with fans) in the opposite direction.Evaporation cools the water, which then collects in the basin and is recirculated.

Q: Why choose a counter flow over a cross flow cooling tower?

A: Higher thermal performance due to better air-water contact.More compact footprint with square designs.Reduced drift loss and lower water splash.Better performance in dusty or dirty environments (less prone to clogging).

Q: Where are square counter flow towers commonly used?

A: Power plants

HVAC systems in large buildings

Petrochemical and chemical plants

Food and beverage industries

Printing and dyeing factory
