Industrial Round Cooling Tower Water Treatment

Round cooling tower is a common industrial cooling equipment, mainly used to reduce water temperature through heat exchange between water and air. Its working principle is based on the evaporation heat transfer principle of water. Through a spray system, hot water is sprayed onto the filling material, and water molecules exchange heat with the air inside the tower, thereby reducing the water temperature.

FRP Round Cooling Tower Operation Principle

The working principle of a round cooling tower is based on evaporative cooling and heat exchange. The specific process is as follows:1.Hot water enters the cooling towerHigh temperature water is introduced into the top of the cooling tower from industrial equipment or air conditioning systems.2.Water is sprayed onto the fillerHot water is sprayed onto the filler inside the cooling tower through a nozzle, increasing the contact area between water and air, which is beneficial for water cooling.3.Evaporation takes away heatDuring the process of water coming into contact with air, some of the water evaporates, absorbs heat, and carries away some of the heat from the water, lowering the water temperature.

FRP Round Cooling Tower Features

1. Strong Corrosion Resistance:

FRP (Fiberglass Reinforced Plastic) is a lightweight and high-strength composite material with excellent corrosion resistance. This allows FRP cooling towers to operate stably for long periods in corrosive environments, thereby extending their service life.

2. High Strength and Lightweight:

FRP cooling towers feature high hardness and toughness, good bending strength, and low weight. This makes transportation, installation, and maintenance more convenient, reducing construction costs.

3. Small Footprint:

FRP cooling towers adopt a streamlined design. The small gap between the fan and the air duct produces strong airflow and high wind speed, resulting in excellent cooling performance. At the same time, their compact size and minimal space requirements make them ideal for areas with limited space.

4. Excellent Cooling Performance:

FRP cooling towers use the principle of heat exchange between water and air. As the two interact, steam is generated, which carries away heat through evaporation. This mechanism effectively dissipates excess heat from industrial processes or HVAC systems, lowering water temperature and ensuring stable system operation.

5. Attractive Appearance:

FRP cooling towers have a glossy surface, offering a sleek and durable appearance. Their modular design also allows multiple units to be connected, creating a more aesthetically pleasing overall layout.

6. Stable and Reliable Operation:

The automatic rotary atomizer, made from wear-resistant materials, is corrosion-resistant and has a long service life. This enhances the operational stability and reliability of the cooling tower, while reducing the need for frequent cleaning, filler replacement, and nozzle maintenance.

7. Energy Efficient and Environmentally Friendly:

FRP cooling towers recycle waste heat through water circulation, allowing for reuse and energy conservation while reducing environmental pollution. In addition, the low-noise design minimizes impact on the surrounding environment.

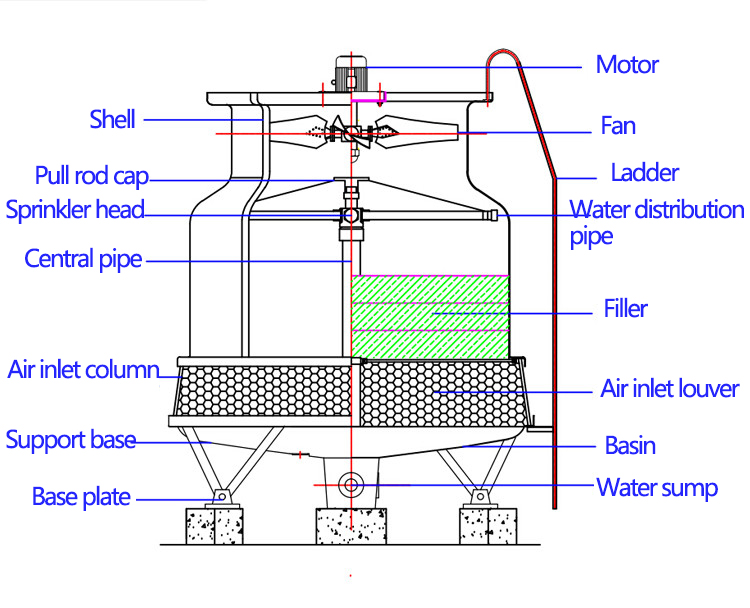

FRP Round Cooling Tower Main Parts

Motor Fully sealed cooling tower dedicated energy-saving and low-noise motor, protection level:lP55.Insulation level: F level.The motor ensures continuous operation for 8000 hours without any faults.

Fan Blade High efficiency axial flow fan (made of ABS oraluminum alloy material) with large air volumeand low noise,light weight, high strength, and good interchangeability.The fan angle can be adjusted.

Belt Reducer Special belt reducer for cooling tower, with highmachining accuracy, compact structure, smoothoperation, low noise, high waterproof performance, high-precision imported bearings,long service life.

Filler High quality modified PVC or PP oblique wave filler sheet, with added convex ribs horizontally,has a large water redistribution ability, low ventilation resistance, good thermal performance, high temperature resistance, low temperature resistance, and good flame retardant performance.

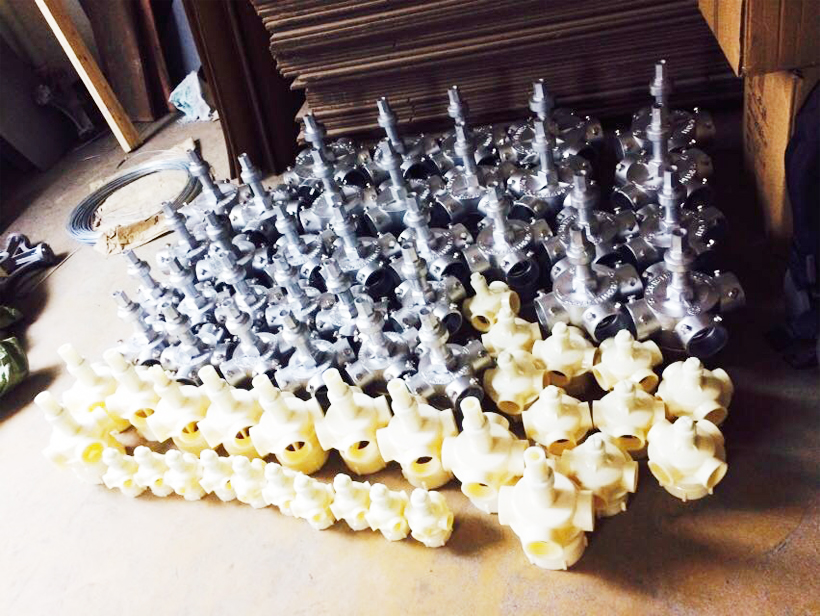

Sprinkler Head The sprinkler head is equipped with stainless steel bearings, which operate flexibly and reliably,low water head, uniform water distribution,PP cloth water pipe is used, and waterproof sleeves are installed on the pipe to overcome the phenomenon of floating water.

FRP Panel The fiberglass shell of the cooling tower is made of fiberglass reinforced plastic (FRP), which is composed of unsaturated polyester resin and reinforced materials such as fiberglass cloth and short cut felt. It has good mechanical properties and corrosion resistance.

FRP Round Cooling Tower Prameter

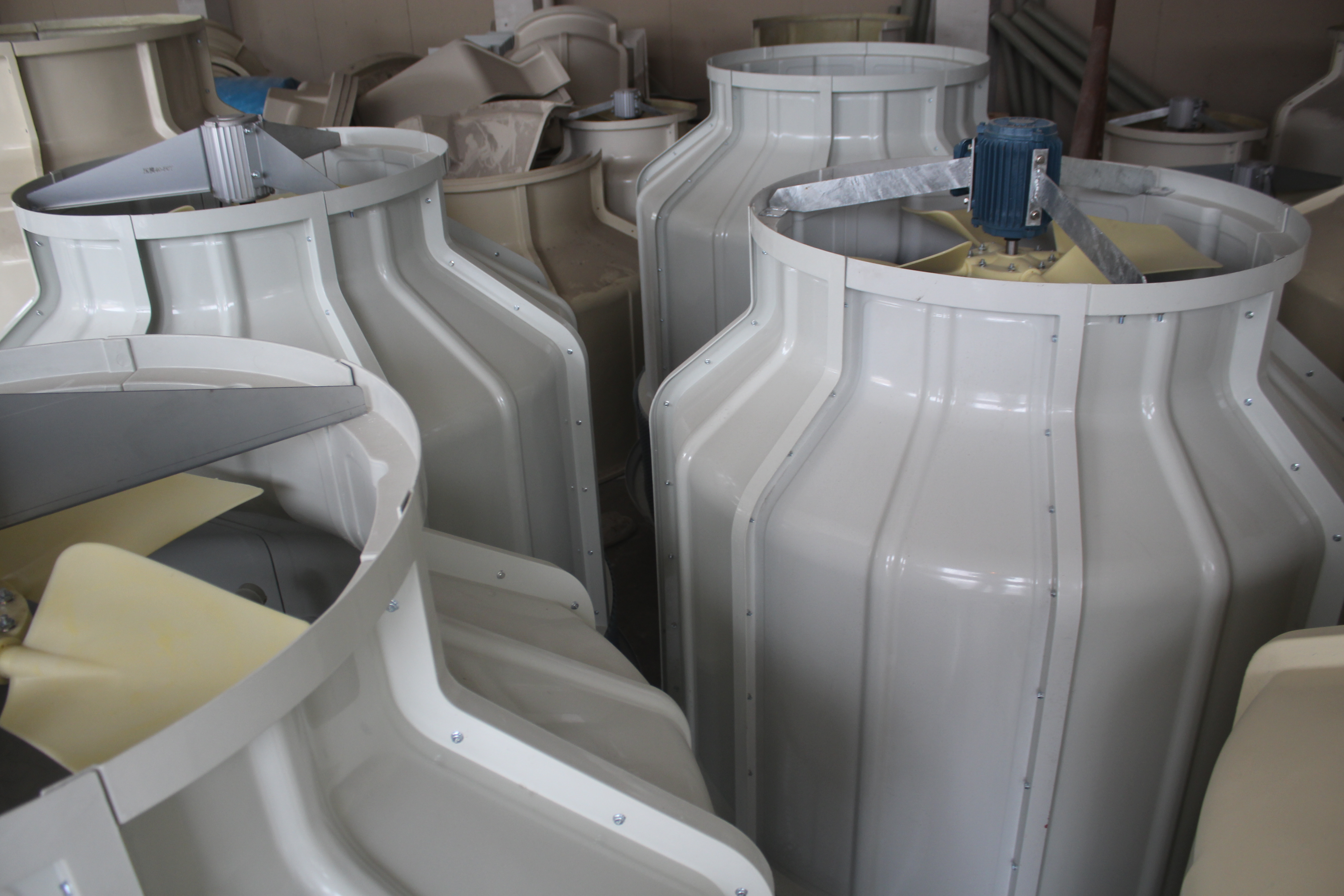

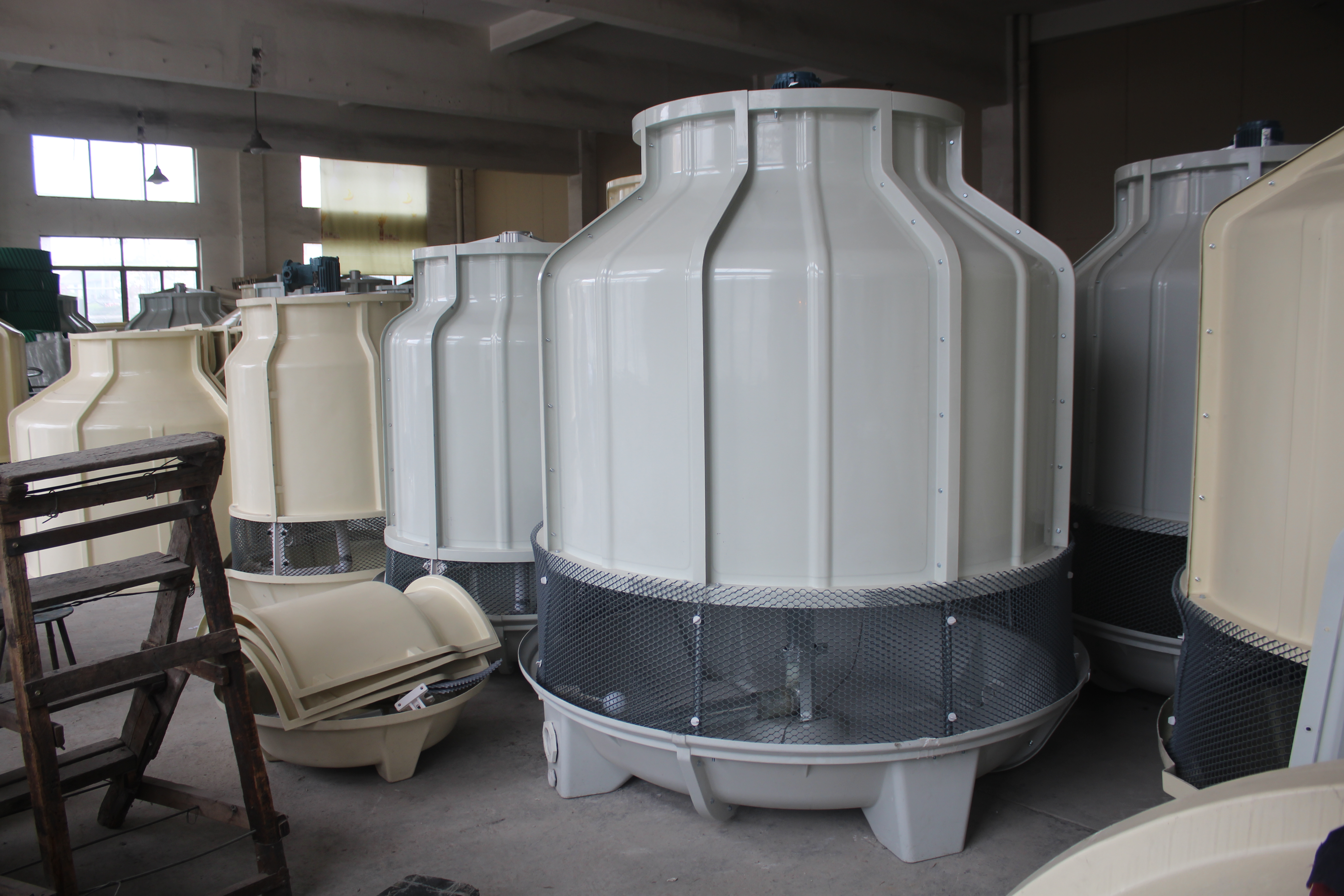

FRP Round Cooling Tower Warehouse

FRP Round Cooling Tower Application

Power Industry: Cooling towers in power plants are the most typical application of fiberglass round cooling towers. The high-temperature water generated in power plants needs to be cooled through the cooling tower to ensure the normal operation of equipment and improve power generation efficiency.

Chemical Industry: Many chemical reactions or processes generate a large amount of heat. Fiberglass round cooling towers can effectively reduce reaction temperatures, ensuring the stability and safety of the production process.

Air Conditioning Systems: Large-scale central air conditioning systems, especially in commercial and industrial buildings, commonly use cooling towers to lower the condenser temperature, maintaining the system's efficient operation.

Metallurgical Industry: High-temperature processes in the metallurgical industry (such as smelting, heat treatment, etc.) also require cooling towers to handle the hot water produced.

HVAC Systems: Fiberglass round cooling towers in the central air conditioning systems of some large buildings help cool the cooling water to maintain comfortable temperatures inside the building.

Food Processing Industry: Many food processing processes (such as heat treatment, steaming, etc.) generate hot water, and cooling towers can effectively lower the temperature, ensuring the proper operation of food production equipment.

FRP Round Cooling Tower Shipment

FRP Round Cooling Tower Certificate

FRP Round Cooling Tower FAQ

Q: What are the advantages of using an FRP Round Cooling Tower?

A: Corrosion resistance: FRP material resists chemicals, weather, and moisture.

Light weight: Easier to install and transport.

Low maintenance: Durable material reduces maintenance needs.

High thermal efficiency: Effective design and fill material ensure maximum cooling performance.

Q: How does a round cooling tower work?

A: Hot water from a system enters the tower and is sprayed over fill media.  Air is drawn or pushed through the tower (usually by a fan), causing water to evaporate.  This evaporation removes heat from the remaining water, which is then recirculated.

Q: Are these towers suitable for outdoor installation?

A: Yes.  FRP round cooling towers are designed to withstand outdoor weather conditions, including UV exposure, rain, and high humidity.

Q:How about the packing of this model?

A: Wooden packing, Plywood board packing, 20 feet container, 40 feet container

Q:What's your company's available production capacity?

A:200 SETS per month.
