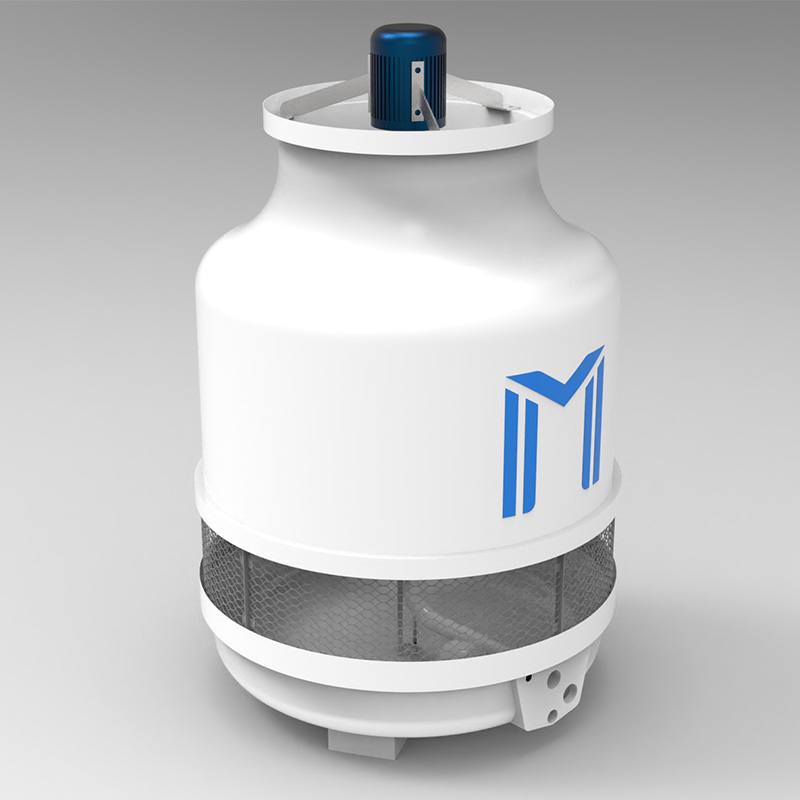

Round Counter Flow Cooling Tower

Round counter flow cooling tower usually adopt a tower like structure, presenting a circular appearance as a whole. They are widely used cooling equipment in industries, buildings, and power production. Their main function is to cool hot water by evaporating it through air for reuse. This type of cooling tower is commonly found in power plants, chemical plants, air conditioning systems, and other places, especially in environments that require a large amount of cooling.

Round Counter Flow Cooling Tower Operation Principle

The working principle of a round cooling tower is based on evaporative cooling and heat exchange. The specific process is as follows:1.Hot water enters the cooling tower High temperature water is introduced into the top of the cooling tower from industrial equipment or air conditioning systems.2.Water is sprayed onto the fillerHot water is sprayed onto the filler inside the cooling tower through a nozzle, increasing the contact area between water and air, which is beneficial for water cooling.3.Evaporation takes away heat During the process of water coming into contact with air, some of the water evaporates, absorbs heat, and carries away some of the heat from the water, lowering the water temperature.

Round Counter Flow Cooling Tower Features

Excellent Cooling Performance:

The open-type round cooling tower uses a fill layer to facilitate full heat and moisture exchange between water and air, effectively lowering the water temperature. Its unique design ensures even water distribution within the tower, thereby enhancing cooling efficiency.

Energy-Saving and Environmentally Friendly:

This type of cooling tower relies on natural convection between water and air for cooling, requiring no additional energy input, resulting in low energy consumption. Additionally, it features a closed-loop structure that reduces environmental impact, making it more eco-friendly.

Compact Structure and Small Footprint:

The circular design allows the cooling tower to be installed and operated in relatively small spaces, making it suitable for modern urban environments where space is limited.

Easy Maintenance:

The open-type round cooling tower has a relatively simple structure, making daily cleaning and maintenance convenient. Its open design also facilitates internal inspection and repairs.

Strong Adaptability:

This type of cooling tower can accommodate various water qualities and environmental conditions, offering wide applicability. Whether it's clean water, wastewater, or other liquid media, this cooling tower can effectively perform cooling operations.

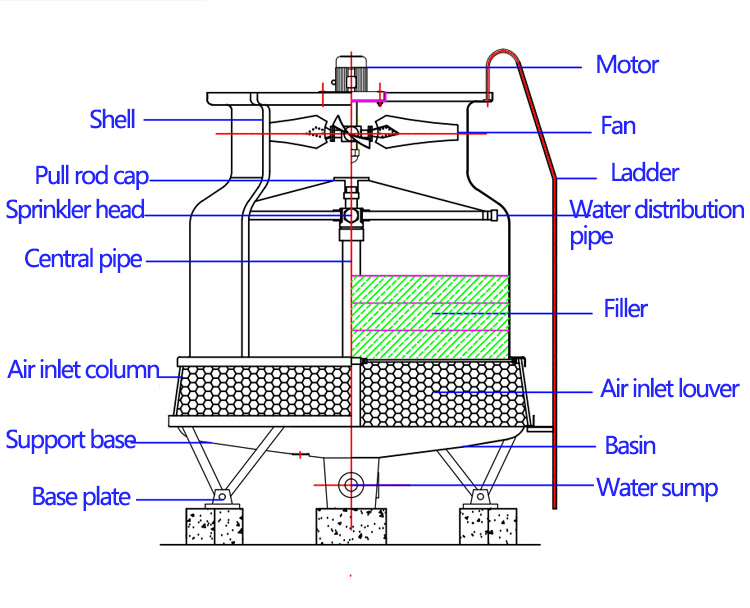

Round Counter Flow Cooling Tower Main Parts

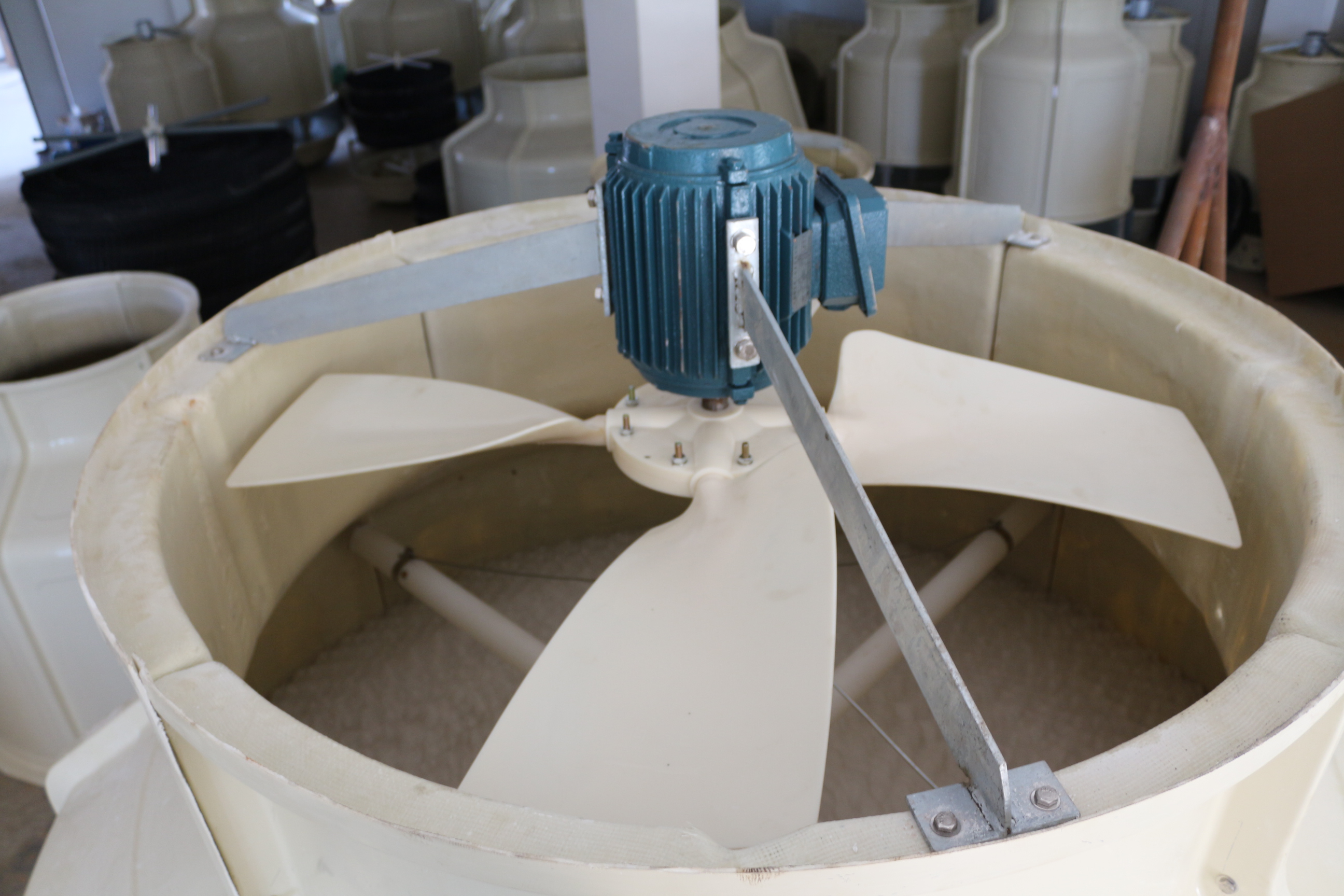

Motor Fully sealed cooling tower dedicated energy-saving and low-noise motor, protection level:lP55.Insulation level: F level.The motor ensures continuous operation for 8000 hours without any faults.

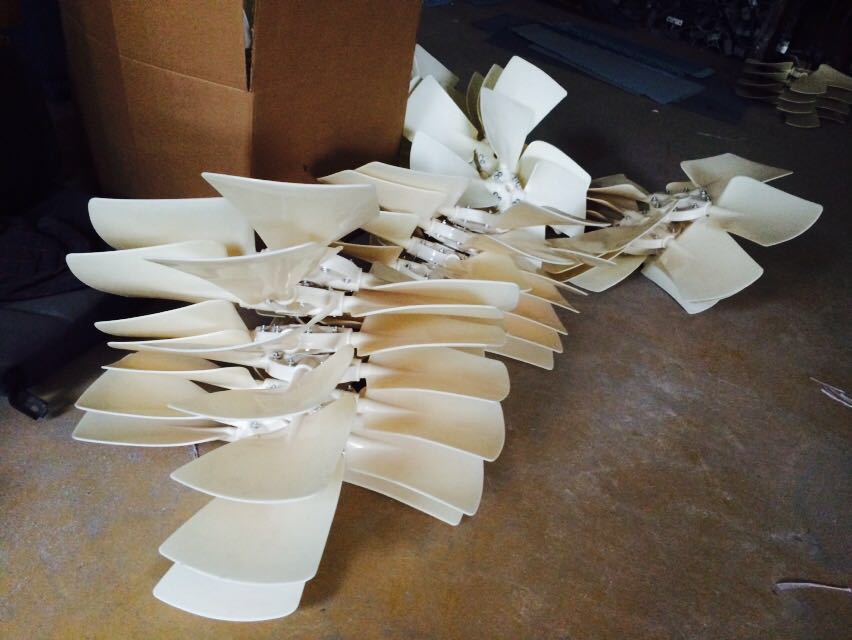

Fan High efficiency axial flow fan (made of ABS oraluminum alloy material) with large air volumeand low noise,light weight, high strength, and good interchangeability.The fan angle can be adjusted.

Air Inlet louver The cooling tower air inlet louver (also known as air intake grille or air intake baffle) is an important component of the cooling tower, installed at the air intake position.Block debris such as leaves, dust, insects, etc. from entering the cooling tower and keep the internal equipment clean.

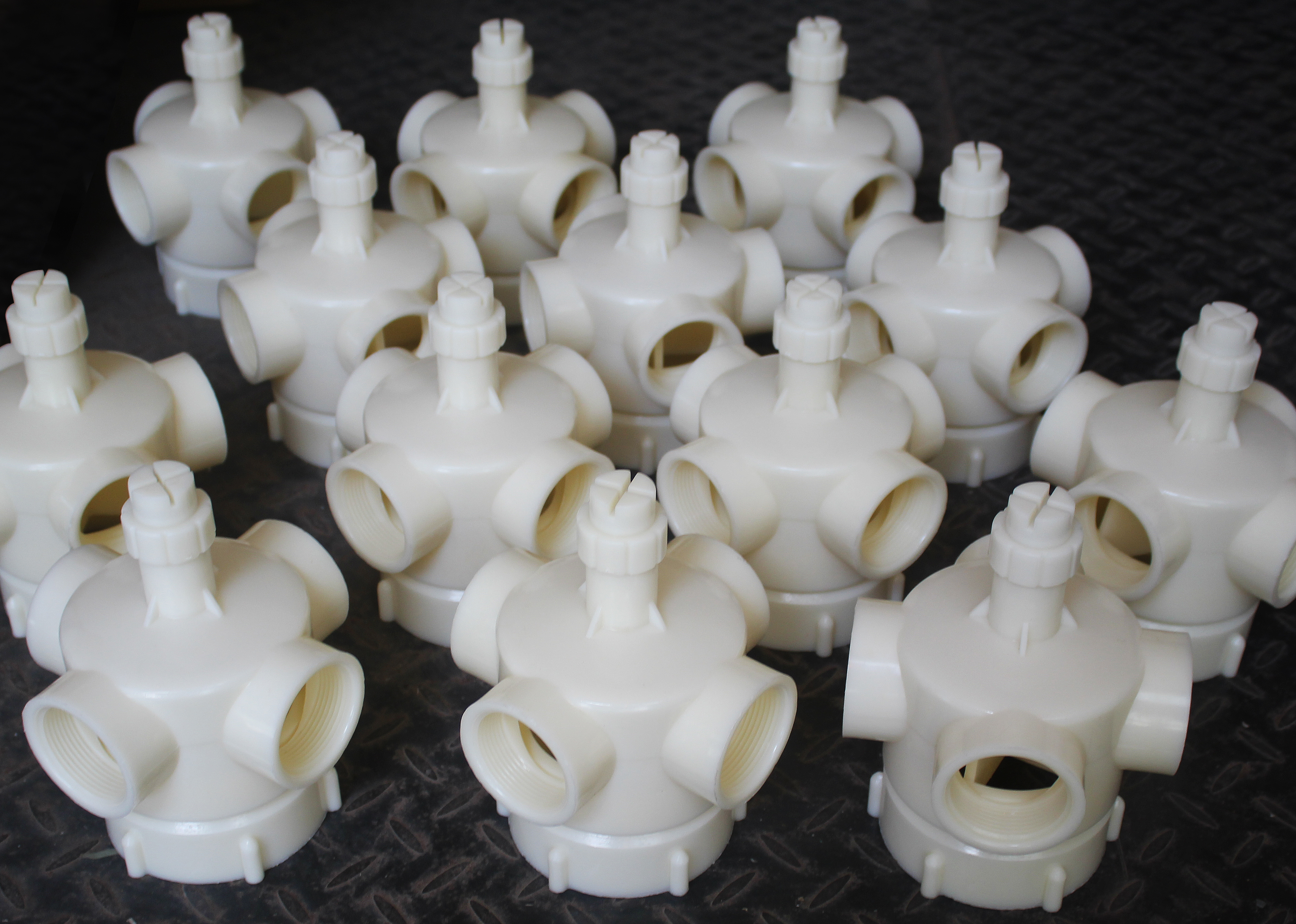

Sprinkler Head The sprinkler head is a key component in the cooling system, mainly used to evenly distribute cooling water to the packing layer, improve heat transfer efficiency, reduce water flow deviation, and optimize cooling effect. ABS sprinkler heads are widely used in various cooling tower systems due to their excellent durability and performance.

Round Counter Flow Cooling Tower Prameter

Round Counter Flow Cooling Tower Application

The application scope of round cooling towers mainly includes the following aspects:

1. Refrigeration of air conditioning equipment: Round cooling towers are commonly used in the refrigeration system of air conditioning equipment, which can effectively reduce water temperature and provide a cold source. Its unique counterflow gas heat exchange technology and high-quality modified PVC inclined ladder wave plate packing design make the cooling effect significant, suitable for places that require stable cooling effect

2. Cooling of industrial equipment: Round cooling towers are also suitable for the cooling needs of various industrial equipment, such as power plants, boiler plants, dyeing and bleaching industries, etc. Its stable structure, stable operation, low noise, and low energy consumption make it perform outstandingly in the industrial field

3. Low noise applications: Round cooling towers typically use counter current gas heat exchange technology, which has low operating noise and is suitable for places that require noise control, such as areas that require a quiet environment

4. Fiberglass material: The body of a round cooling tower is usually made of high-quality fiberglass, which is lightweight, sturdy, and resistant to aging. It is suitable for various occasions that require lightweight design and long-term stable operation

Round Counter Flow Cooling Tower Certificate

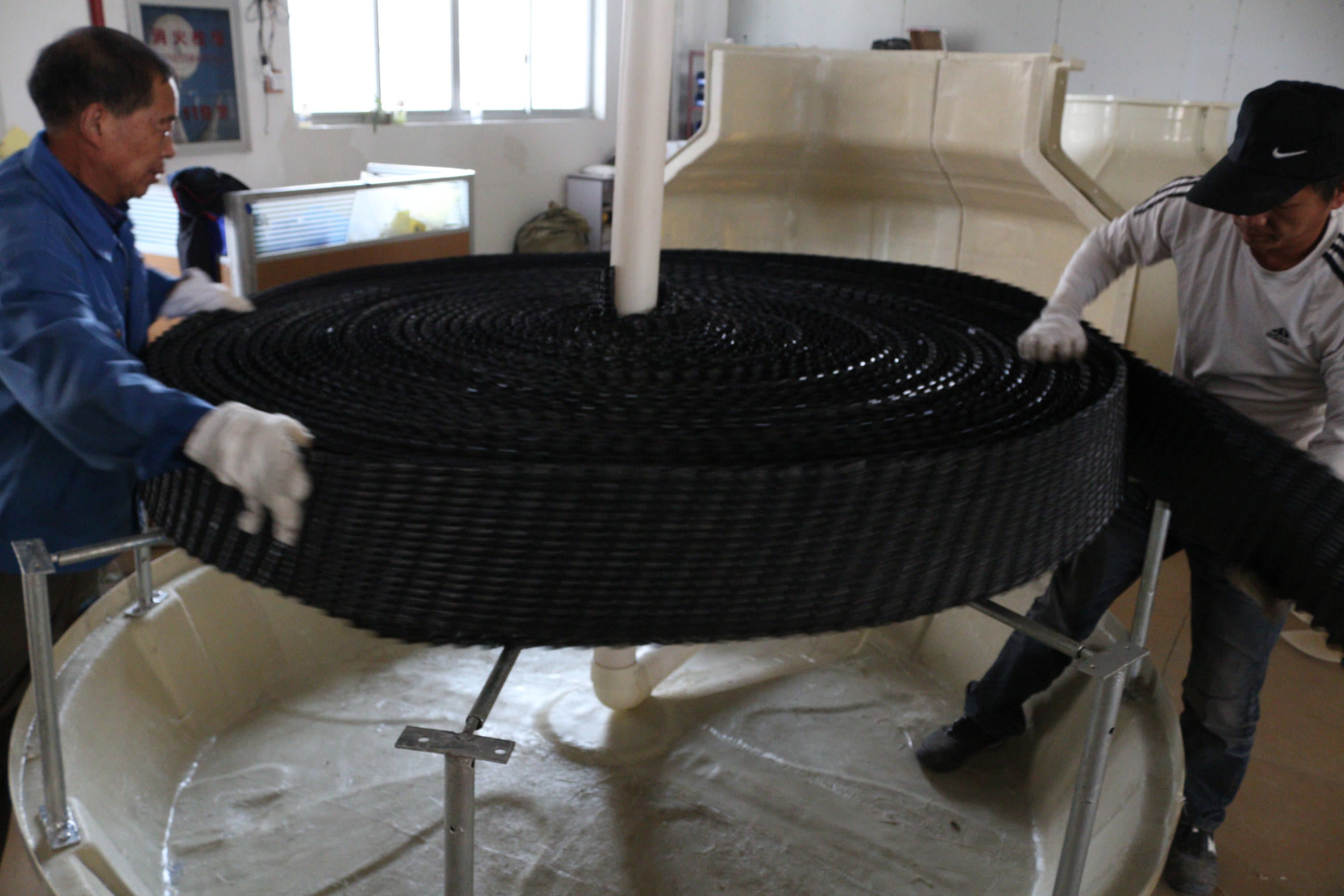

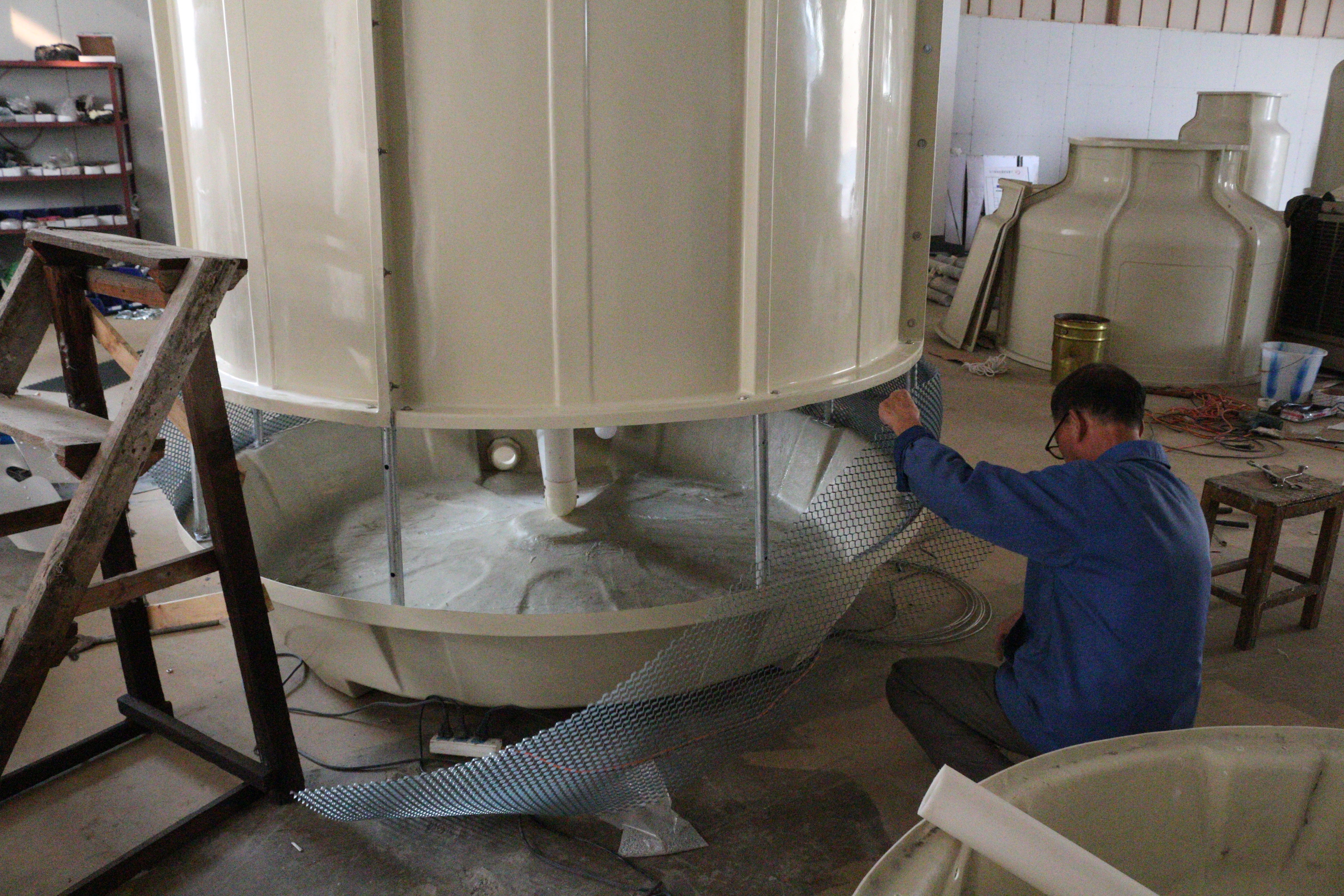

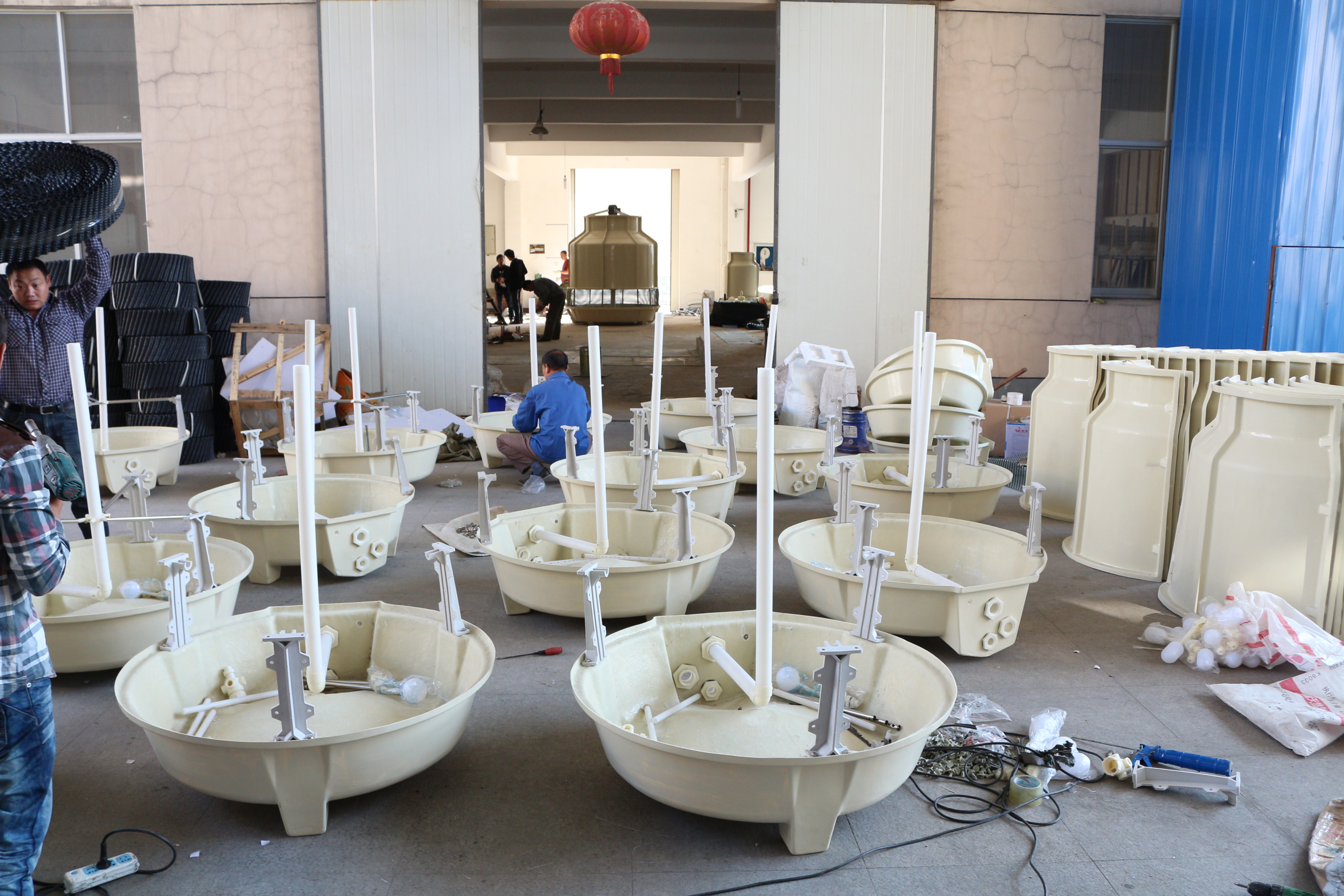

Round Counter Flow Cooling Tower Factory Installation

Round Counter Flow Cooling Tower FAQ

A: Body: FRP (Fiberglass Reinforced Plastic)

Sprinkler Head: Aluminium or ABS

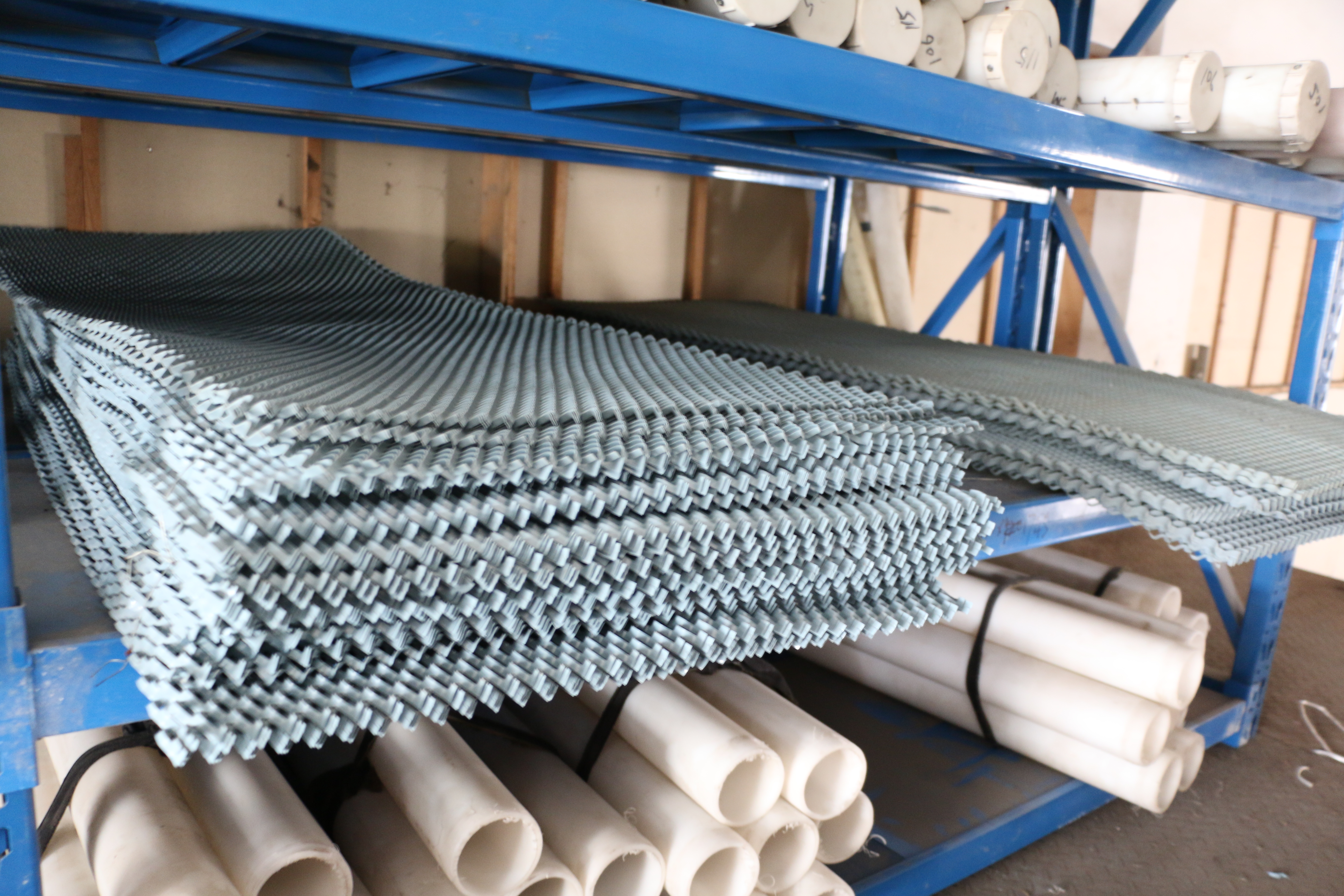

Fill Media: PVC or PP (for heat exchange surface)

Fan: Aluminium or FRP or ABS

Motor: Cast iron or aluminum shell
