Closed Loop Vs Open Loop Cooling Tower

Closed Loop and Open Loop cooling towers are two common cooling methods in industrial and HVAC systems, with different working principles, application scenarios, and advantages and disadvantages.

1、 Closed Loop Vs Open Loop Cooling Tower Basic principle differences:

Open Loop Cooling Tower:

Water is directly exposed to the air, and after spraying, it comes into contact with the air and evaporates to remove heat.

Hot water flows from the equipment into the cooling tower and is sprayed through nozzles. Some of the water evaporates and carries away heat, and the cooled water returns to the equipment for continued use.

Features:

Direct contact between water and air may result in evaporation, pollution, and scaling.

The circulating water system is interconnected with the internal environment of the cooling tower.

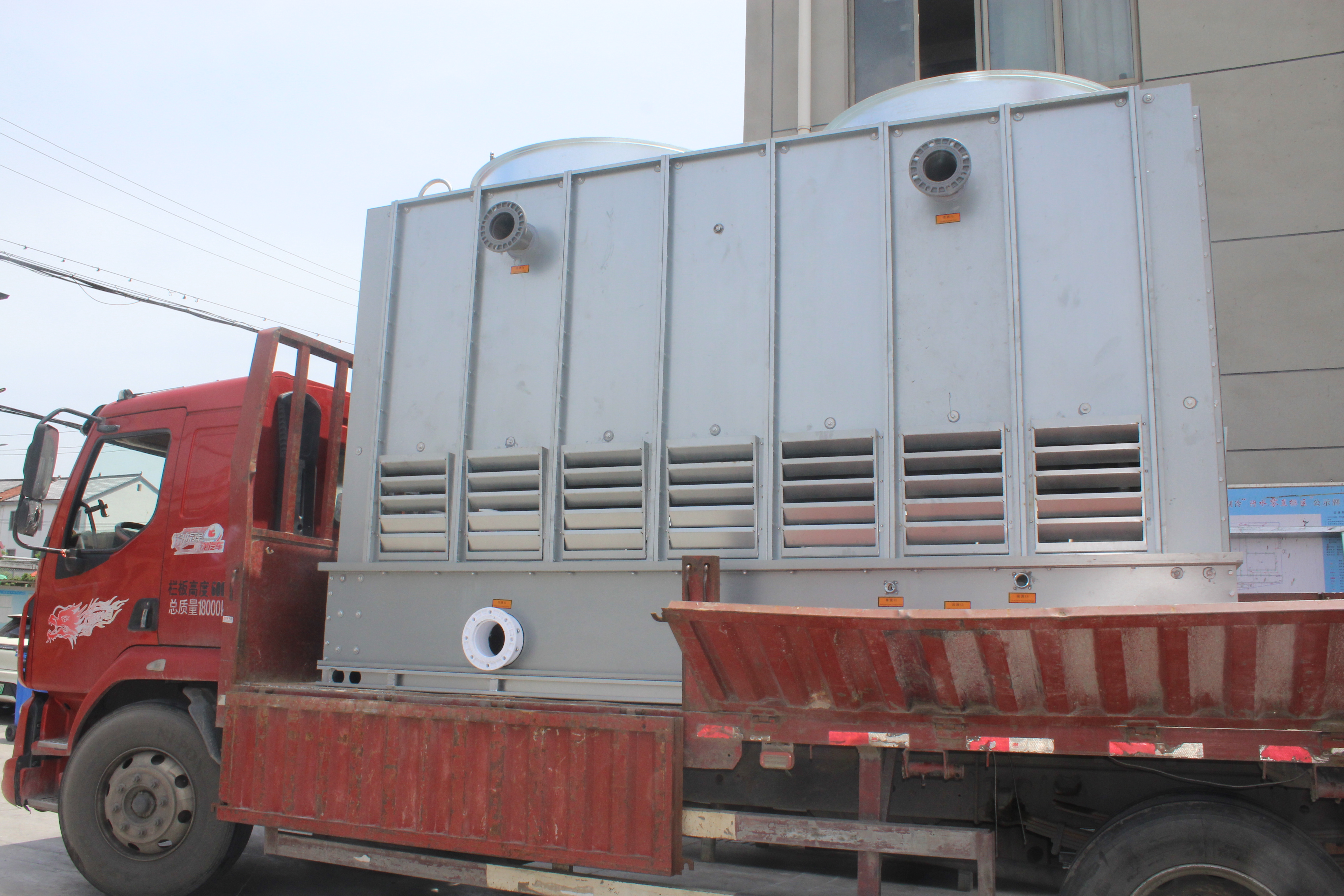

Closed Loop Cooling Tower:

The cooling water circulates in a closed pipeline and does not come into direct contact with the outside air/water.

The outside of the pipe is cooled by spraying water and air, taking away the heat from the hot water inside the pipe.

The liquid inside the tube (water or other coolant) should never be exposed and kept clean.

Features:

The cooling medium is in a closed system and does not come into contact with the outside world.

Heat exchange is achieved through heat exchangers (or coils).

2、 Closed Loop Vs Open Loop Cooling Tower Main differences and comparisons:

3、Closed Loop Vs Open Loop Cooling Tower Summary of Respective Advantages:

Advantages of Open Loop Cooling Tower:

1.Low initial investment

2.High cooling efficiency (taking away more heat through direct evaporation)

3.Suitable for occasions with low water quality requirements

4.Open loop cooling towers can be more space-efficient, especially when high cooling capacity is needed

Advantages of Closed Loop Cooling Tower:

1.System cleanliness, good water quality, suitable for high-precision equipment (such as laser cutting machines, CNC, etc.)

2.No evaporation inside the pipe, reducing water loss and saving water

3.The system does not require frequent dosing and descaling, and requires minimal maintenance

4.Long service life, suitable for year-round operation or harsh environments

5.Can use coolant (non water) for better antifreeze performance

4、Closed Loop Vs Open Loop Cooling Tower Typical Application Scenarios:

Reasons for recommending industry/occasion types

Ordinary industrial cooling (steel mills, power plants, etc.) open cooling towers have low cost, high efficiency, and are suitable for high flow cooling

Closed cooling towers for precision equipment cooling (medical equipment, semiconductors, CNC) have high cleanliness, corrosion resistance, and stable systems

Closed cooling tower anti freezing in cold northern regions, stable operation throughout the year

Closed cooling towers in water scarce areas save water and have low evaporation
