Open vs Closed Cooling Tower: Which is More Suitable for Your Needs?

In the fields of industrial production, data centers, central air conditioning, etc., cooling towers serve as the core equipment for heat exchange, and their performance directly affects the stability and energy consumption of the system. Faced with mainstream open cooling towers and closed cooling towers in the market, many users are trapped in a dilemma: which one is more energy-efficient? Which maintenance cost is lower? This article will delve into the working principle, performance comparison, and applicable scenarios to help you find the most suitable solution.

Ⅰ. Core principle: Contact heat dissipation vs. indirect heat exchange

1. Open cooling tower: open circulation and direct contact heat dissipation

The open cooling tower adopts an open water circulation system, and its working principle is based on direct contact between water and air for heat dissipation. Hot water is sprayed down from the top of the tower, forming small water droplets or water films. At the same time, the fan sucks in air from the bottom or side, and inside the tower, it intersects with the falling water flow in the opposite direction or horizontally. At this point, water carries away heat through evaporation, and some of the water vapor is discharged with the air. The unevaporated water flows back to the collection tank for recycling. This direct contact method makes the heat transfer efficiency of open cooling towers higher, especially in environments with low air humidity, where the evaporative heat dissipation effect is significant.

2. Closed cooling tower: closed cycle and dual heat exchange

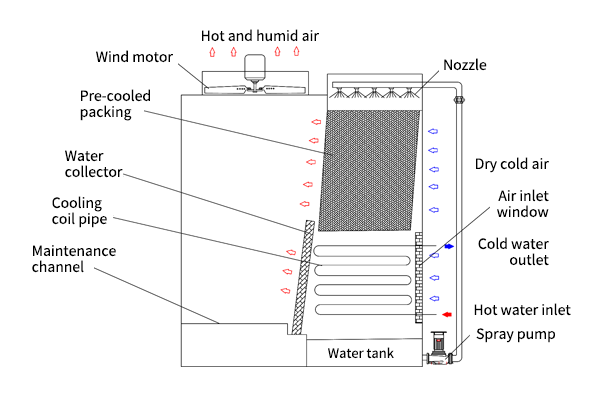

The circulating water of a closed cooling tower is entirely in a closed pipeline and indirectly exchanges heat with the outside air through metal heat exchange coils.  The workflow is as follows: circulating water flows inside the coil, external spray water forms a water film on the surface of the coil, and the fan introduces air to accelerate the evaporation of the water film, taking away the heat of the circulating water inside the coil. After collecting the spray water, it is circulated again through a water pump, forming a quadruple heat exchange system of "internal circulating water coil external circulating spray water air". This design maximizes the purity of the circulating water and avoids the invasion of external impurities and pollutants.

Ⅱ、 Comprehensive Performance Comparison: Efficiency, Cost, and Maintenance

1. Cooling efficiency: Environment determines victory or defeat

Open cooling towers perform excellently in dry and high-temperature environments. Taking a thermal power plant in the north as an example, during high temperatures in summer, open cooling towers can reduce the temperature of circulating water by 8-10 ℃ through direct evaporation and heat dissipation, with a cooling efficiency of over 90%. But in high humidity areas, such as coastal cities in the south, due to the near saturation of the air, evaporation and heat dissipation are limited, and the cooling efficiency may decrease to 60% -70%.

The cooling efficiency of a closed cooling tower is relatively stable and not affected by environmental humidity. Usually, the circulating water temperature can be controlled within a range 5-8 ℃ higher than the ambient temperature. However, due to the thermal resistance of indirect heat transfer, its ultimate cooling effect is slightly inferior to that of an open cooling tower under ideal operating conditions.

2. Energy consumption and operating costs: the game between initial investment and long-term consumption

Open cooling towers have a simple structure and lower equipment costs, generally 30% -50% lower than closed cooling towers. However, during its operation, due to the evaporation loss of some water, it requires continuous replenishment, resulting in higher water and water treatment costs. Taking a medium-sized chemical plant as an example, the annual water replenishment of the open cooling tower can reach 50000 tons, and with the cost of water quality treatment, the annual operating cost is about 150000 yuan.

Although the initial investment of a closed cooling tower is high, the circulating water operates in a closed manner with almost no evaporation loss, and the annual water replenishment is only 5% -10% of that of an open tower. In addition, it adopts variable frequency control for fans and pumps, with energy consumption 15% -20% lower than open towers. However, the metal heat exchange coils of closed towers are expensive, and once damaged, the repair cost can reach 20% -30% of the total equipment price.

3. Maintenance difficulty: Water quality management is key

Open cooling towers are susceptible to sandstorms, dust, and microbial contamination due to direct contact with air, leading to blockage of packing and scaling of pipelines. It is necessary to check the cleanliness of the packing every month, conduct water quality testing every quarter, and conduct comprehensive cleaning at least once a year. The maintenance frequency is high and the cost is high.

The circulating water of a closed cooling tower does not come into contact with the outside world, and the water quality is stable. It only needs to be regularly checked for the quality of the spray water and the cleanliness of the surface of the heat exchange coil. The maintenance cycle can be extended to six months or even one year. However, the structure of a closed tower is complex, and the internal coils are difficult to maintain. Once a malfunction occurs, the maintenance time is relatively long.

Ⅲ. Deep analysis of application scenarios: Industry demand determines choice

1. Open cooling tower: a cost-effective industrial first choice

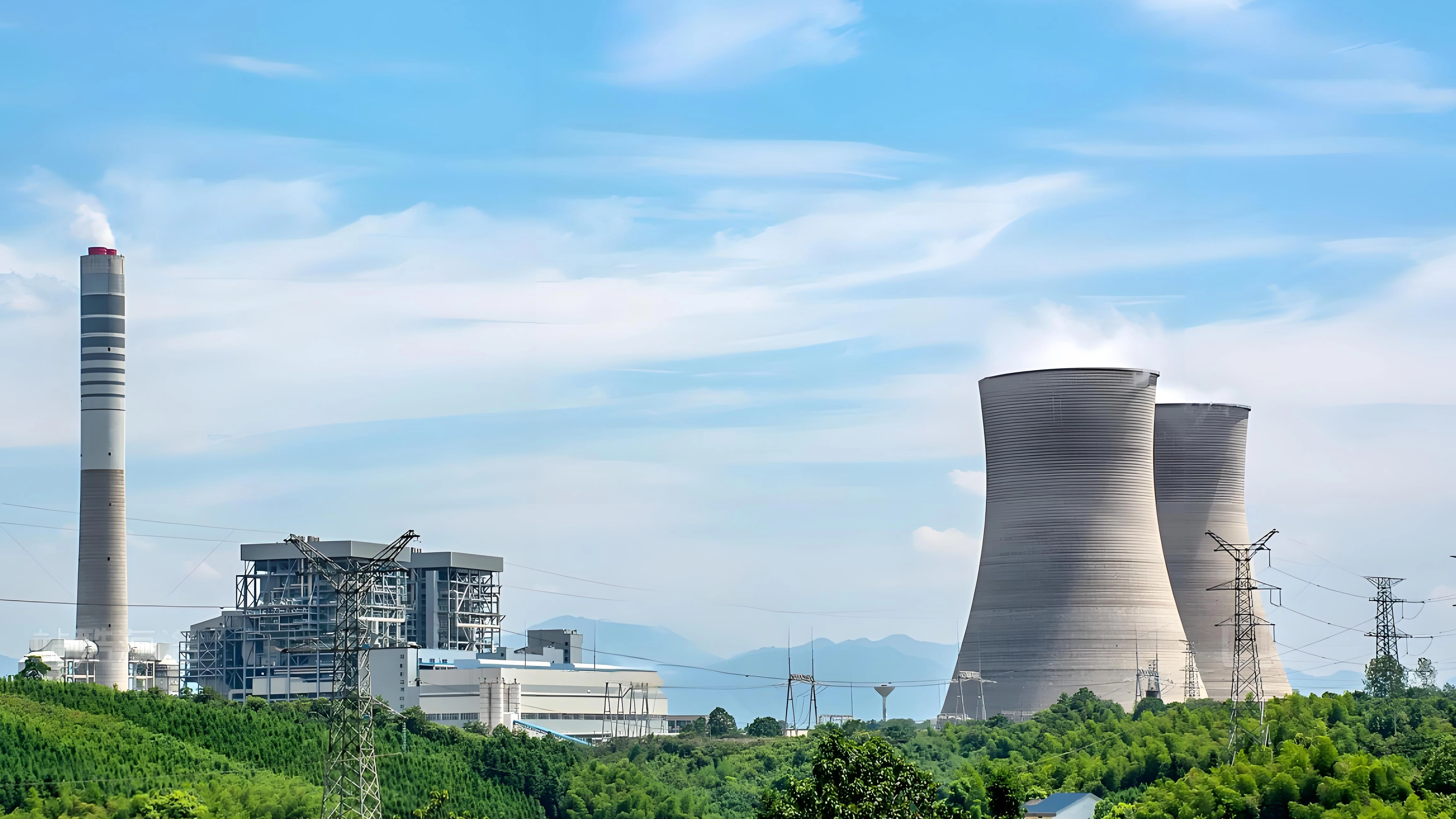

In the power industry, the circulating water cooling systems of thermal power plants and thermal power plants often use open cooling towers, which have high flow rates and high heat dissipation requirements that are highly compatible with the efficient evaporation and heat dissipation characteristics of open towers.

Ordinary manufacturing industries such as textiles, building materials, and food processing have low requirements for water quality, and the low-cost and high cooling efficiency of open cooling towers have become the preferred choice.

Central air conditioning system: In areas with dry climate and abundant water resources, open cooling towers can be used as cooling equipment for central air conditioning in large commercial buildings.

https://www.machcooling.com/Industrial-Round-Cooling-Tower-Water-Treatment-pd585254358.html

https://www.machcooling.com/Square-Counterflow-Cooling-Tower-pd537935358.html

2. Closed cooling tower: Guardian of precision environment

Data Center: The servers have strict requirements for cooling water temperature and quality. The closed-loop design of the closed cooling tower can prevent damage to equipment from scale and microorganisms, ensuring stable operation of the data center.

Electronic semiconductor industry: The chip manufacturing process requires ultrapure water cooling, and closed cooling towers can avoid water pollution and ensure production accuracy.

Pharmaceutical and food processing industries have extremely high requirements for hygiene standards. Closed cooling towers can prevent external pollutants from entering the circulating water, meeting GMP (Good Manufacturing Practice) standards.

https://www.machcooling.com/Closed-Circuit-Cross-Flow-Cooling-Tower-pd564475358.html

https://www.machcooling.com/Mixed-Flow-Closed-Cooling-Tower-pd508775358.html

Ⅳ.Selection suggestion: Comprehensive evaluation, precise decision-making

If pursuing low cost and high heat dissipation efficiency, and using environments with low humidity and low water quality requirements, such as ordinary industrial plants and small central air conditioning systems, open cooling towers are an economical choice.

If applied to scenarios that require extremely high water quality and temperature stability, or in areas where water resources are scarce and water quality is poor, such as data centers and precision instrument cooling, closed cooling towers may have high costs but significant long-term benefits.

Special requirements: In cold regions, closed cooling towers have better anti freezing performance than open towers because the circulating water does not come into contact with the air; In highly corrosive environments, both require the use of anti-corrosion materials, but the sealing characteristics of closed towers can better reduce the risk of corrosion.

Open cooling towers and closed cooling towers have their own advantages and disadvantages, and there is no absolute "optimal solution". Users need to weigh their industry characteristics, budget costs, environmental conditions, and maintenance capabilities comprehensively before making a choice. If you need further technical consultation or customized solutions, please feel free to contact our professional team at any time to safeguard your cooling needs.
