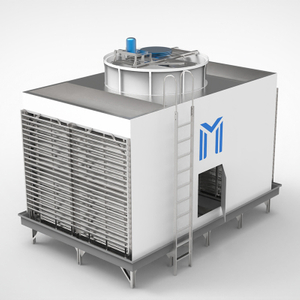

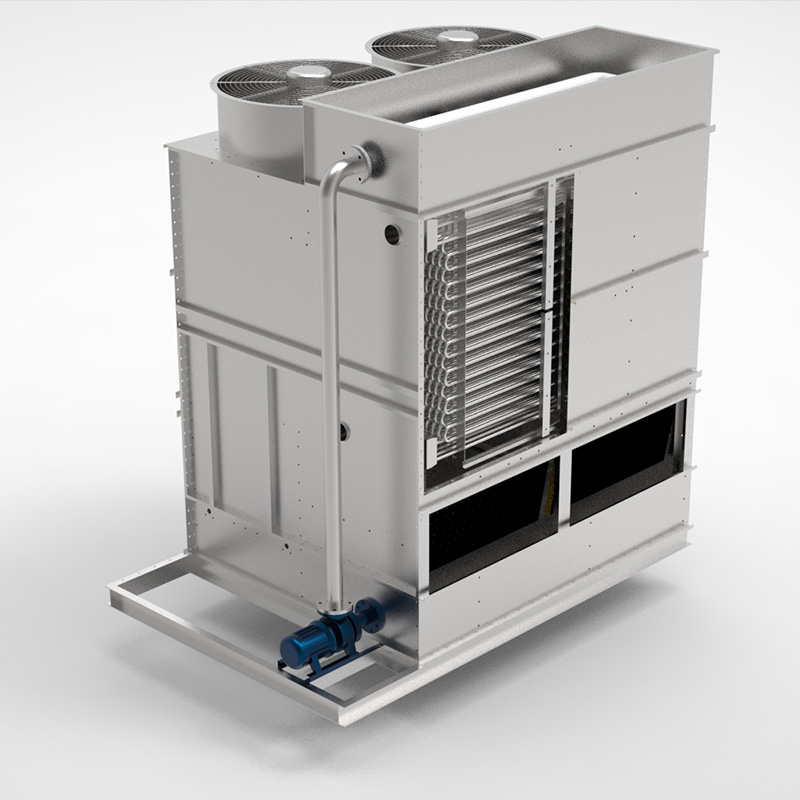

Mixed Flow Closed Cooling Tower

Closed cooling tower is an efficient and energy-saving cooling equipment, which is widely used in industry, commerce and HVAC systems. Different from the open cooling tower, the closed cooling tower exchanges heat through a closed circulation system, which avoids the direct contact between the cooling medium and the outside air.

Mach cooling can provide customers with a variety of cooling equipment and processes, which mainly include closed-circuit cooling towers, open cooling towers, air coolers, and industrial water tanks. At the same time, it produces and operates various specifications of cooling tower packing, cooling tower fans, cooling tower motors, reducers, and other fiberglass cooling tower accessories. It also undertakes cooling tower renovation and maintenance services. The company's products can be widely applied in areas such as high-speed railways, precision air conditioning, metallurgy and forging, oil and power, chemical and pharmaceutical industries, and heat treatment.

Mixed Flow Closed Cooling Tower Video

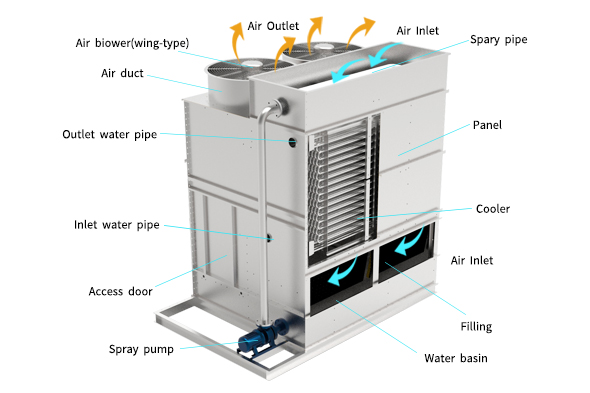

Mixed Flow Closed Cooling Tower Principle of operation

Mixed Flow Closed Cooling Tower Features

• Efficient cooling




  Mixed-flow closed cooling tower adopts efficient heat exchange design, which can quickly and effectively transfer heat from cooling medium to ensure stable cooling effect.

• Water-saving and energy-saving




  The closed circulation system greatly reduces the evaporation loss and splash loss of water, and the water circulation utilization rate is high, which significantly reduces the demand for water replenishment and saves water resources.

• Stable operation




  The circulating water of closed cooling tower usually adopts soft water closed circulation, which effectively prevents the equipment from being damaged by scale generated in the tower or user equipment during long-term use.

• Environmental protection




  The circulating water of the closed cooling tower through the closed inner circuit is not polluted and can be used continuously. The relative evaporation of spray water is less, which protects the environment to a great extent.

• Easy Maintenance




  Since the cooling medium circulates within a closed system, it prevents the entry of external impurities and contaminants. This significantly reduces issues such as scaling and corrosion in the cooling system, extends the equipment's service life, and decreases maintenance workload and costs.

• Intelligent control




  Closed cooling towers are usually equipped with fans and pumps controlled by frequency conversion, which can dynamically adjust the running state according to the actual cooling demand to avoid unnecessary energy.

• Low noise design




  Closed cooling towers usually adopt low noise design, and the frequency conversion control of fans and pumps further reduces the operating noise and improves the working environment.

Mixed Flow Closed Cooling Tower Main Parts

Cooler The coil is made of stainless steel, offering strong corrosion resistance for acid-base environments; freeze and pressure resistance to reduce winter pipe burst risks; dense surface to prevent scaling and extend lifespan; high heat dissipation efficiency with low maintenance costs. It can be upgraded to red copper tube material.

Fan and Drive Assembly Low-speed aluminum alloy fan paired with a gear reducer, ensuring smooth operation and noise levels below 60 dB(A). The motor is available in explosion-proof or energy-efficient models, supporting multi-speed adjustment with energy savings up to 50%. Motor upgrades to Siemens or WEG motors are compatible.

Spary pump This high-efficiency pump complies with the JIS-C410 standard, featuring large flow rate, low head, anti-clogging design, high efficiency, minimal energy loss, and extremely low power consumption. Its compact structure, small size, and aesthetically pleasing design ensure easy installation, stable operation, and low noise. With high component concentricity, leak-proof performance, and simplified maintenance, the pump offers both reliability and user-friendly functionality.

Customized service Circulating Water Pump / Control Cabinet System / Water Tank / Stainless Steel Housing and Frame / Fasteners (304/316L) / Dual-speed Motors and Variable Frequency Motor Anti-freeze Heaters

Mixed Flow Closed Cooling Tower Prameter

Model	Cooling  capacity	SIZE							Cooling fan					Spray  pump			Water pipe diameter				Weight
	Water  flow rate	(L)	(W)		(H)		Diameter		Power			Air capacity		Power			inlet/ outlet		Make  up pipe		N.W.		Operation weight
	m/h	mm	mm		mm		mm		kw			m/h		kw			mm		mm		kg		kg
AHCF-D SERIES
AHCF-10D	10	2000	1300		2080		φ700		0.55 0.55			6400 6400		0.55			DN65		DN25		640		1730
AHCF-15D	15	2000	1400		2300		φ750		0.75 0.75			9600 9600		0.55			DN65		DN25		710		1880
AHCF-20D	20	2000	1500		2300		φ750		1.1 1.1			12800 12800		0.55			DN65		DN25		810		1920
AHCF-30D	30	2300	1800		2350		φ800		1.5 1.5			19200 19200		0.75			DN65		DN25		920		2320
AHCF-40D	40	2800	1800		2400		φ812		1.5 1.5			25600 25600		1.1			DN80		DN32		1200		2860
AHCF-50D	50	2800	2000		2550		φ900		2.2 2.2			32000 32000		1.1			DN100		DN32		1380		3200
AHCF-65D	65	2950	2300		2850		φ900		2.2 2.2			41600 41600		1.5			DN100		DN32		1620		3980
AHCF-80D	80	3600	2300		3000		φ1000		3 3			51200 51200		2.2			DN125		DN40		2280		5330
AHCF-100D	100	4300	2600		3100		φ1200		4 4			64000 64000		3			DN125		DN40		2800		7150
AHCF-125D	125	4800	2700		3200		φ1400		5.5 5.5			80000 80000		3			DN150		DN40		3290		7780
AHCF-150D	150	5300	3000		3750		φ1400		4*3			64000 g4888		4			DN150		DN40		3880		9800

Mixed Flow Closed Cooling Tower Factory Show

Mixed Flow Closed Cooling Tower Application

Mixed-flow closed cooling tower is suitable for many industrial fields, such as metallurgy, aviation, electric power, chemical industry, machinery, petroleum, food, plastics, rubber and so on.

Mixed Flow Closed Cooling Tower Maintenance Precautions

1. Maintenance of equipment：

Regularly clean the dust, oil stains, and other debris on the outer shell, and also remove the scale on the heat exchange coil. Regularly clean the spray filter. The scaling material is the biggest influencing factor on the heat dissipation effect of the heat transfer coil.

2. Water quality management and maintenance：

Due to the good heat dissipation effect inside the heat exchange coil and long-term exposure to hot water circulation, it is relatively easy to scale. Therefore, soft water must be used for the internal water of the heat exchange coil. The outer layer of the cooler is sprayed with a spray pump, and the spray water is tap water. If it frequently comes into contact with hot copper pipes, scaling will definitely occur, and it should be regularly cleaned.

3. Maintenance and upkeep of pumps：

① The inlet pipe must be highly sealed;

② The imported pipeline must be filled with liquid, and the pump is prohibited from running for a long time in a cavitation state;

③ Regularly check the current of the motor and ensure that it does not exceed the rated current of the motor;

④ The pump should be supervised by a dedicated person during operation to prevent accidents;

⑤ It is strictly prohibited to arbitrarily turn off the cooling water supply during high temperature operation;

⑥ After long-term operation of the pump, if the noise and vibration of the unit increase due to mechanical wear, it should be stopped for inspection. If necessary, vulnerable parts and bearings can be replaced. The maintenance period of the unit is one year.

4. Maintenance and upkeep of mechanical seals inside the pump：

① Mechanical seal lubrication should be clean and free of solid particles;

② Mechanical seals are strictly prohibited from working under dry friction conditions

③ Before starting, the pump (motor) should be turned a few times to avoid damaging the seal when suddenly started.
