Cooling Tower Selection Guide: A Comprehensive Analysis from Principles to Practice

Cooling towers serve as critical equipment in industrial production and building air conditioning systems, with their selection directly impacting system energy efficiency, operational stability, and long-term economy. This article systematically introduces the core elements of cooling tower selection, including comparisons of cooling tower types, key points of thermal calculation, considerations for environmental factors, material selection criteria, and economic evaluation methods, assisting engineering technicians in making scientific and rational selection decisions.

I. Analysis of Cooling Tower Types and Application Scenarios

The selection of cooling towers first requires an understanding of the characteristics and application scenarios of different types. The mainstream cooling towers on the market can be divided into three categories: counter-flow, cross-flow, and closed-circuit cooling towers, each with distinct features in structural principles, energy efficiency performance, and maintenance requirements.

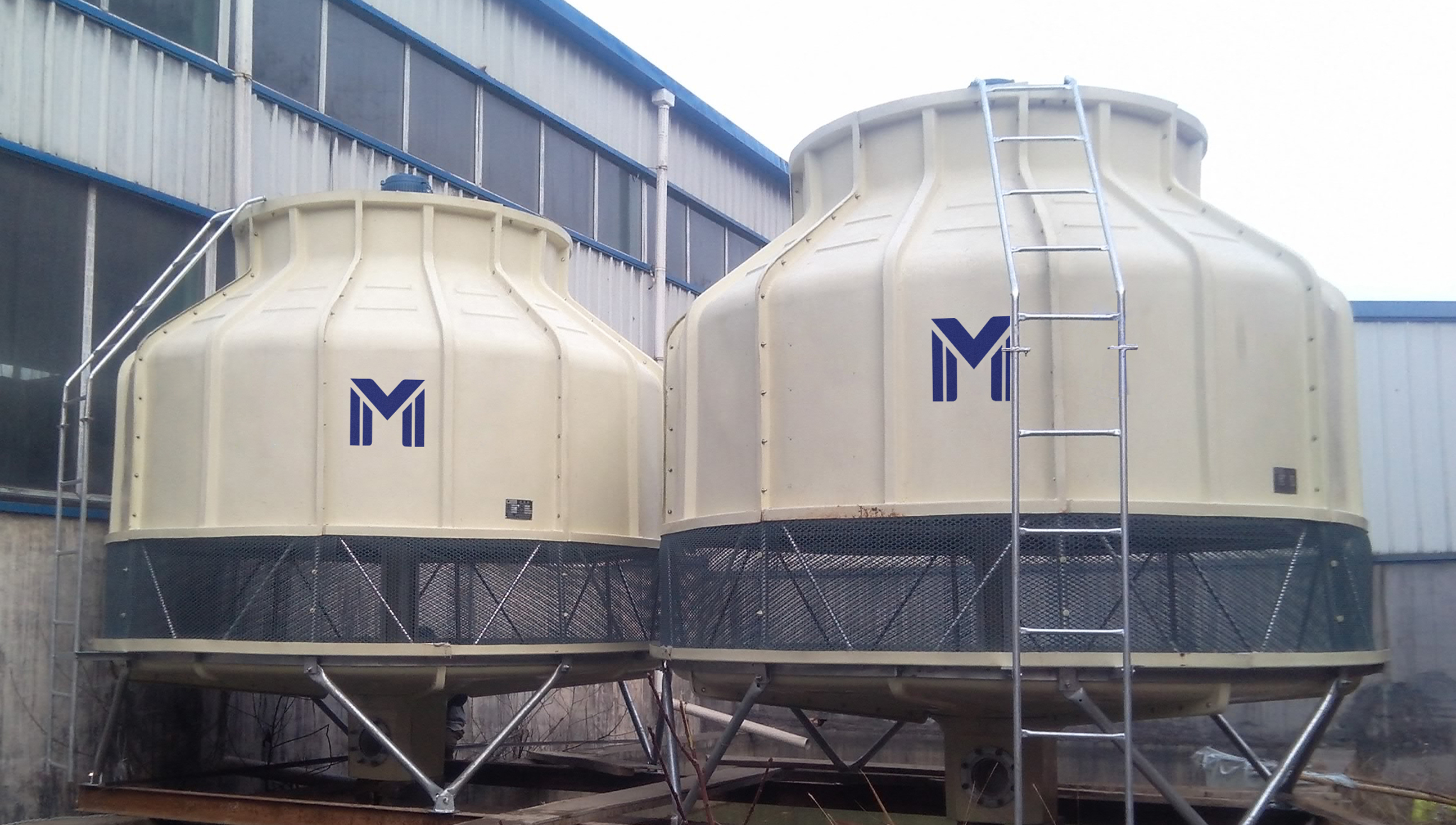

1.Counter-flow Cooling Towers

The counter current cooling tower adopts the design of air and water flowing in opposite directions, which has the advantages of high heat transfer efficiency and small footprint. Its typical structure includes a bottom air inlet, a middle packing layer, a top fan, and a water distribution system. Hot air naturally rises and fully contacts with falling water droplets, achieving efficient heat exchange. This type of cooling tower is particularly suitable for industrial sites with limited space, such as petrochemical plants, power stations, etc., with a processing capacity typically ranging from 100-4000m ⊃3;/h. The disadvantage of a counterflow cooling tower is that the water distribution system is relatively complex, requiring high water quality, and the fan is located at the top of the tower, making maintenance relatively inconvenient.

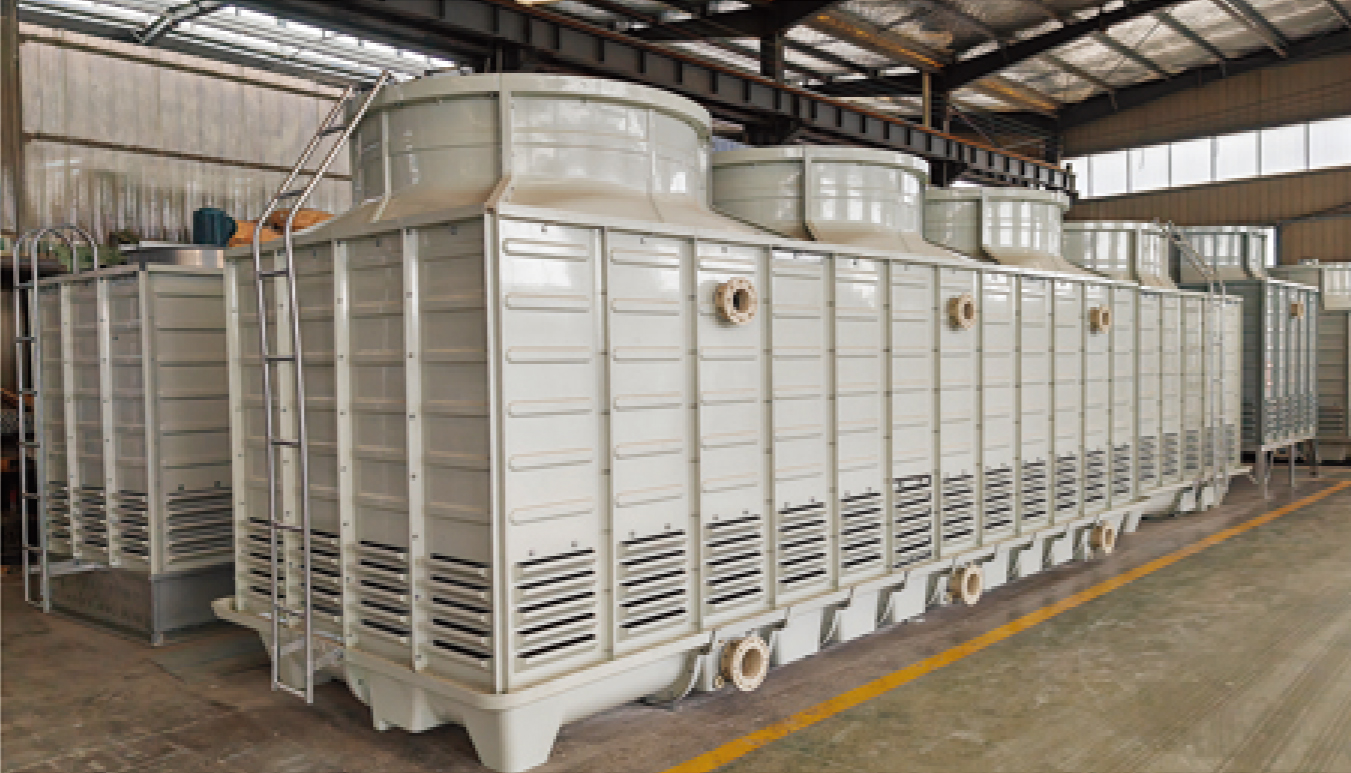

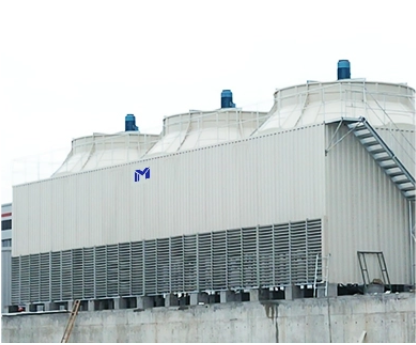

2.Cross-flow Cooling Towers

Characterized by air flowing horizontally across vertically falling water films, cross-flow cooling towers rely on gravity for water distribution, eliminating the need for pressurized nozzles. This structure ensures uniform water distribution, low system resistance, and low operating noise, making it ideal for noise-sensitive urban commercial buildings like hotels, hospitals, and office buildings. The typical processing capacity of cross-flow towers is 50-2000 m³/h. Their open structure facilitates maintenance and inspection, but they generally occupy 20-30% more floor space than counter-flow towers of the same capacity, with slightly lower heat exchange efficiency due to shorter air-water contact time.

3.Closed-circuit Cooling Towers (Evaporative Condensers)

By isolating process fluids from cooling water through coils, closed-circuit cooling towers completely avoid cross-contamination of water quality. This design makes them ideal for precision industries (such as semiconductors and pharmaceuticals) and clean air conditioning systems. Although closed-circuit towers have higher initial investment (40-60% more expensive than open towers), they significantly reduce water treatment costs and maintenance frequency, demonstrating outstanding long-term operational economy. Typical applications include laser equipment cooling and data center backup cooling systems.

4.Special Design Variants for Unique Scenarios:

• Frequency Conversion Cooling Towers: Adjust fan speed to match load changes, with significant energy savings (up to 30%), suitable for systems with fluctuating loads.

• Silent Cooling Towers: Adopt low-speed fans and special soundproof designs, controlling noise below 60dB(A), suitable for residential areas.

• Anti-freeze Cooling Towers: Equipped with electric heaters and anti-freeze circulation systems, suitable for winter operation in cold northern regions.




II. Thermal Calculation and Capacity Determination Methods

The core of cooling tower selection lies in accurately calculating the required cooling capacity, which is completed through systematic thermal calculations. Cooling capacity is typically expressed in "refrigeration tons" (RT), where 1RT equals 3.517kW of refrigeration capacity. The calculation process integrates three key elements: system heat load, design temperature difference, and local meteorological parameters.

1. Determination of Heat Load

The foundation of calculations varies by application scenario:

• Air Conditioning Systems:Q=G×ρ×Cp×ΔT

(Q: Heat load in kW; G: Circulating water volume in m³/h; ρ: Water density in kg/m³; Cp: Specific heat capacity in kJ/(kg·℃); ΔT: Inlet-outlet water temperature difference in ℃)

2.Typical temperature difference for air conditioning systems is 5℃, while industrial systems may require 8-15℃ based on process requirements：

• Industrial Equipment: Refer to the equipment's rated heat dissipation or obtain through actual measurements.

• Power Industry: Typically estimate cooling demand as 1.5-2% of turbine exhaust volume.

3.Design Condition Parameters

Key parameters significantly impact calculation results:

• Wet Bulb Temperature: Adopt the local summer air conditioning design wet bulb temperature, ranging from 24-28℃ in major Chinese cities.

• Inlet/Outlet Water Temperature: 37/32℃ for air conditioning systems, and possibly 40/30℃ for industrial systems.

• Approach (Difference between cold water temperature and wet bulb temperature): Generally not less than 2.5-3℃; higher requirements lead to larger equipment.

4.Practical Case Calculation

A data center in Shenzhen needs to cool a 500kW heat load under design conditions of 35/30℃, with a local design wet bulb temperature of 27℃:

（1）Water volume calculation:G=Q/(ρ×Cp×ΔT)=500/(1×4.18×5)=23.9m³/h

（2）Conversion to refrigeration tons:500/3.517=142RT

（3）Refer to performance curves based on wet bulb temperature 27℃ and approach 3℃ (30-27), determining a 160RT cooling tower is needed (considering 10-15% margin).

5. Capacity Correction Factors

（1）Altitude Correction: Cooling capacity decreases by approximately 3% for every 300m increase in altitude.

（2）Non-standard Condition Correction: Adjust with correction factors provided by manufacturers when actual operating parameters differ from design.

（3）Future Expansion Consideration: Typically reserve 10-20% capacity margin.

III. Evaluation of Environmental Factors and Installation Conditions

Cooling tower performance is closely related to the installation environment, and scientific site evaluation can avoid operational issues. Environmental considerations should include meteorological conditions, space limitations, and surrounding sensitive points.

1. Meteorological Parameters

• Wet Bulb Temperature: Determines the cooling limit, requiring the use of extreme values with at least a 10-year return period.

• Dry Bulb Temperature: Affects evaporation, necessitating increased water flow or heat dissipation area in high-temperature environments.

• Wind Rose Diagram: Guides the selection of air inlet orientation to avoid short-circuit circulation.

• Extreme Winter Low Temperature: Areas with temperatures below -5℃ require anti-freeze designs, such as electric tracing.

2. Space Layout

• Floor Space: Cross-flow towers need more planar space, while counter-flow towers can utilize height.

• Installation Spacing: Maintain at least 1 times the tower width between towers and no less than 2m from walls.

• Ventilation Conditions: Avoid stagnant air areas, and top exhaust should not directly face buildings or obstacles.

• Load-bearing Capacity: Roof installation requires structural load verification, with full water weight reaching 1.5-2 tons/m².

3. Environmental Sensitivities

• Noise Limitation: Residential areas typically require ≤55dB(A) at night, necessitating low-speed fans or mufflers.

• Drift Control: Sensitive areas require a drift rate <0.001%, demanding high-efficiency drift eliminators.

• Appearance Requirements: Commercial buildings may specify colors or shapes to coordinate with architectural styles.

4. Water Quality Conditions

• Water Hardness: High hardness water (>300mg/L) is prone to scaling, requiring increased blowdown or softening treatment.

• Chloride Content: Select stainless steel or FRP materials when >200ppm to avoid carbon steel corrosion.

• Suspended Solids: Sandy areas need filters to prevent packing blockage.

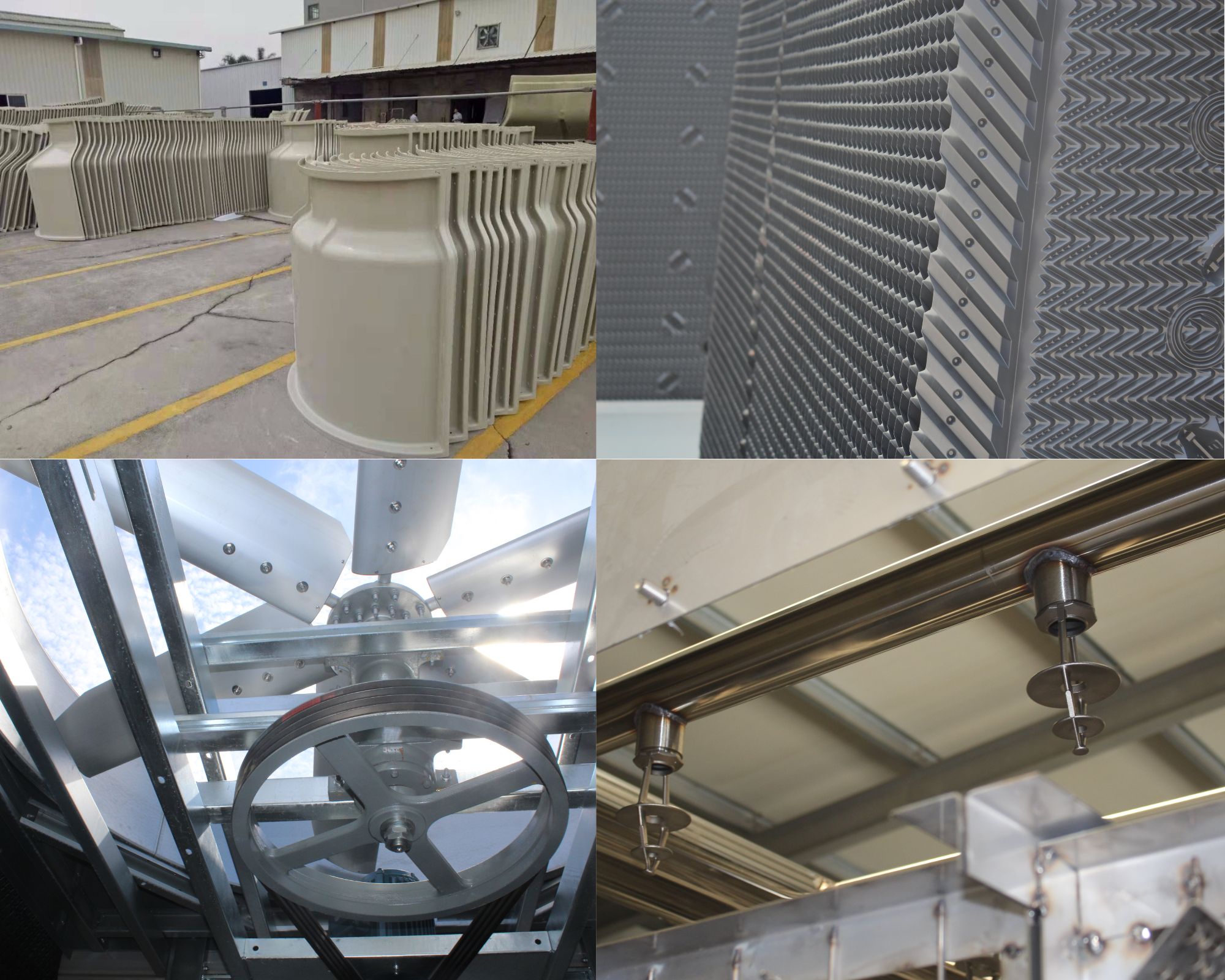

IV. Key Component and Material Selection Criteria

The material configuration of cooling towers directly affects equipment lifespan and maintenance frequency. Selection should balance budget, water quality, and expected service life. Modern cooling tower components include the shell, packing, structural parts, and water pan, each with different material options.

1. Shell Materials

• Fiberglass Reinforced Plastic (FRP): The mainstream choice, corrosion-resistant, lightweight, and flexible in modeling, with a service life of 10-15 years.

• Galvanized Steel Plate: Lower cost but moderate corrosion resistance, requiring regular maintenance, suitable for dry areas.

• Stainless Steel: A premium option, especially for coastal high-salt environments, but 2-3 times the price of FRP.

• Concrete: Used for ultra-large industrial cooling towers, with high initial cost but a lifespan of up to 30 years.

2. Packing Selection

• PVC film filler: The most common, with a large heat exchange area (250-350m ⊃2;/m ⊃3;), low price but not high temperature resistance (≤ 60 ℃)

• PP Honeycomb Packing: Better temperature resistance (up to 80℃), with superior anti-aging properties compared to PVC.

• Wood Packing: A traditional choice, naturally corrosion-resistant but prone to microbial growth, requiring high maintenance.

• Stainless Steel Packing: Used in high-temperature (>80℃) or corrosive environments, 5-8 times the cost of PVC.

3. Structural Component Materials

• Fan: Aluminum alloy blades + carbon steel hub is an economical choice; stainless steel integral casting suits corrosive environments.

• Transmission System: Gear reducers have longer maintenance intervals than belt drives but cost 30-40% more.

• Water Pan: FRP one-piece molding offers good leak prevention, while stainless steel facilitates cleaning but costs more.

• Fasteners: 304 stainless steel is standard, with 316 stainless steel for coastal areas.

4. Anti-corrosion Design

• Galvanized Layer Thickness: Hot-dip galvanizing for structural parts should be ≥80μm.

• Weld Treatment: All welded parts require secondary anti-corrosion treatment.

• Bolt Protection: Use nylon lock nuts or apply anti-rust grease.

• Foundation Isolation: Install rubber pads between the tower and concrete foundation to prevent electrochemical corrosion.

• Annual savings: (50-40)×6000×0.8 = 48,000 yuan

• Payback period for price difference: (30-25)/4.8 ≈ 1.04 years

• Total savings over 10 years: 4.8×10-(30-25) = 430,000 yuan

V. Suggestions for selection process and implementation steps

The selection of scientific cooling towers should follow a systematic decision-making process, which generally involves six key steps from requirement analysis to final procurement to ensure that important considerations are not overlooked. The following is a recommended standardized selection process and implementation points.

Step 1: Basic data collection

·Clearly identify cooling targets: air conditioning systems, industrial equipment, or generator sets

·Determine heat load: Obtain accurate values through calculations or equipment parameters

·Collect meteorological data: design wet bulb temperature, extreme temperature, etc

·Site measurement: available space dimensions, load-bearing limitations, etc

·Water quality report: pH value, hardness, chloride ion content, etc

Step 2: Preliminary screening of types

·Choose counterflow or crossflow based on space constraints

·Consider open or closed according to water quality requirements

·Assess the need for silent design based on noise restrictions

·Determine the type of transmission system based on maintenance capability

Step 3: Technical parameter calculation

·Calculate the required cooling capacity (in tons)

·Determine the design conditions (inlet and outlet water temperature, proximity)

·Perform altitude and temperature correction

·Consider an appropriate safety margin (10-15%)

Step 4: Compare manufacturer's solutions

·Obtain proposals from at least 3 qualified suppliers

·Compare core parameters: air volume, power, noise, etc

·Verify whether the performance test data meets the standard

·Evaluate whether the special design meets the requirements

Step 5: Economic evaluation

·Calculate the initial total investment

·Estimate annual operating energy consumption cost

·Predict the replacement cycle and cost of major components

·Conduct investment payback period analysis

Step 6: Final Decision and Procurement

·Comprehensive technical and economic analysis results

·Confirm after-sales service terms

·Clearly define acceptance criteria and performance testing methods

·Sign a formal contract that includes a warranty period
