Counter Flow Cooling Tower Working Principle

A counterflow cooling tower works by moving air upward against the downward flow of hot water, maximizing heat transfer efficiency.

Here’s the working principle step by step:

Counterflow Cooling Tower Working Principle

1. Hot Water Inlet

Warm process water from the plant enters the tower at the top through distribution pipes and nozzles.

Spray nozzles spread the hot water evenly over the fill (heat exchange surface).

2. Air Flow (Counter Direction)

A fan (induced draft or forced draft) pulls or pushes ambient air **upward** from the bottom of the tower.

This airflow direction is opposite to the falling hot water (hence “counterflow”).

3. Heat Transfer Process

As water droplets fall over the fill, they come into contact with the upward moving air.

Heat transfer occurs in two ways:

Sensible heat transfer: direct cooling of water due to temperature difference.

Latent heat transfer (evaporation): a small portion of water evaporates, carrying away heat.

4. Cooled Water Collection

The cooled water falls into the **cold-water basin** at the bottom of the tower.

This cooled water is recirculated back to the industrial process or HVAC system.

5. Air Discharge

Warm, moist air exits through the top of the cooling tower.

Drift eliminators capture water droplets to reduce water loss.

Key Advantages of Counterflow Cooling Towers

Higher thermal performance (air directly contacts sprayed water).

Compact design (smaller footprint than crossflow).

Better suited for higher cooling ranges.

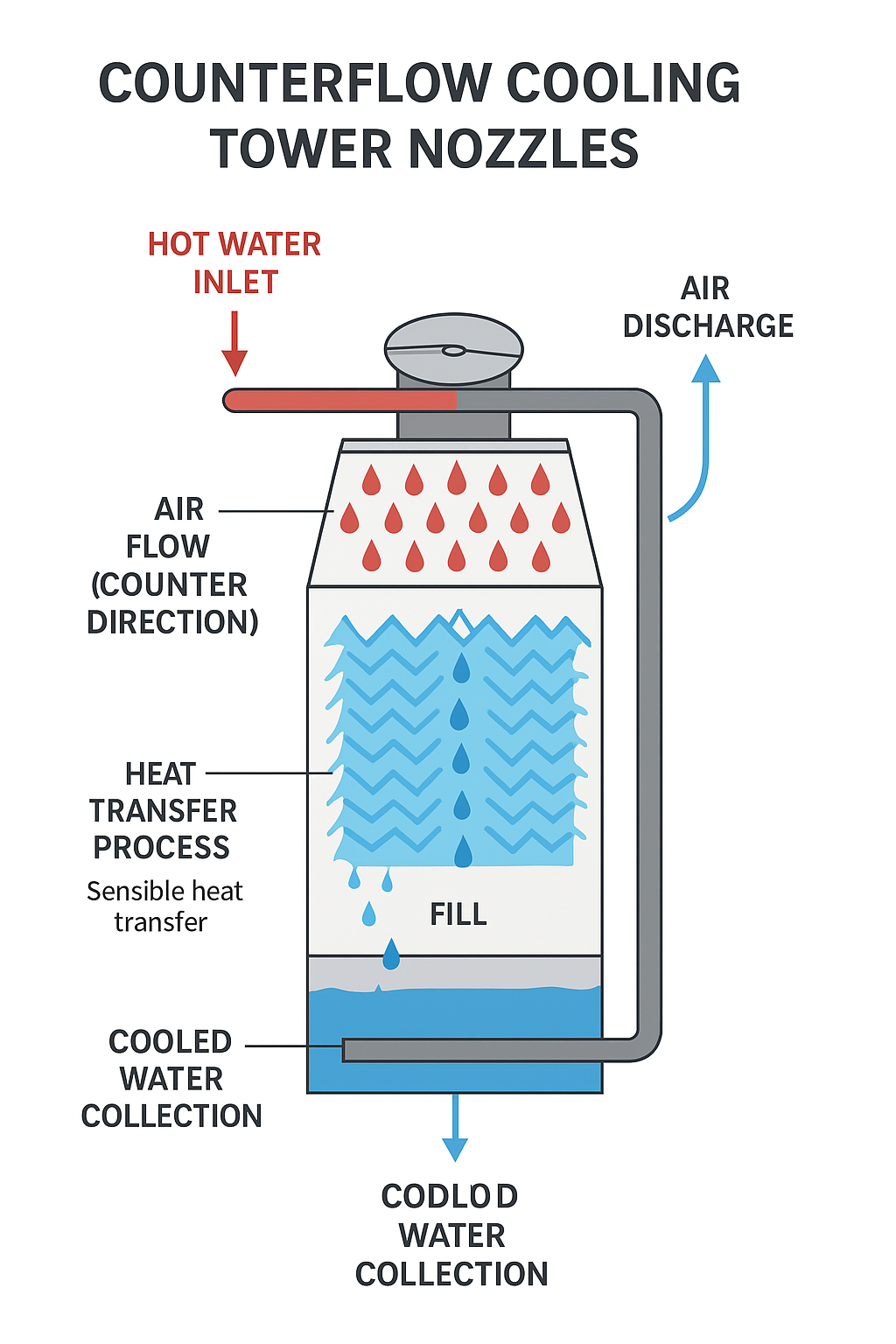

Here is a labeled diagram of counterflow cooling tower working principle
