AD-HV
MACH
| AD-HV: | |
|---|---|
Product Description

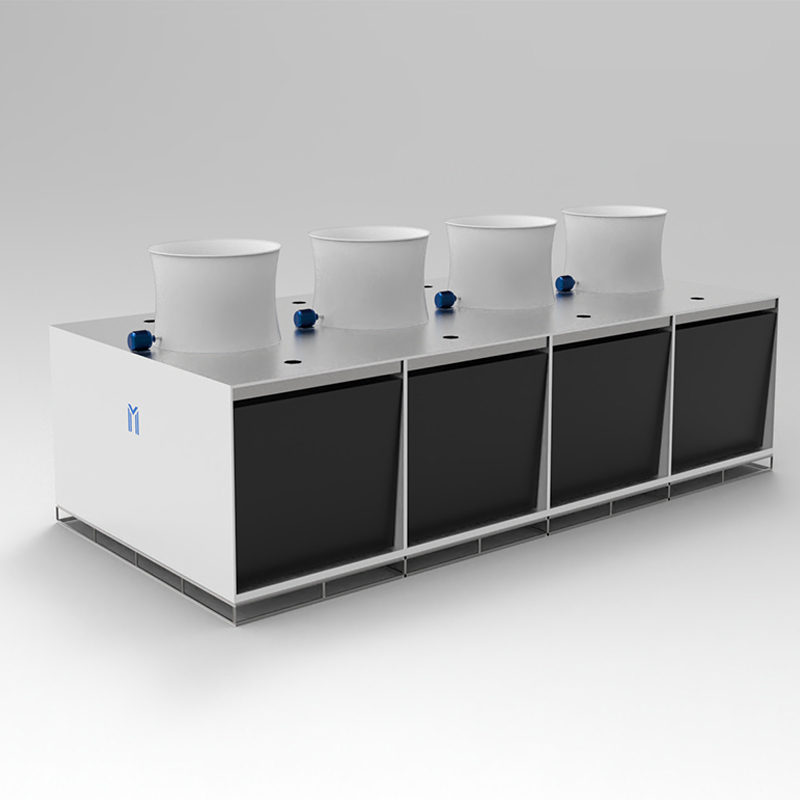

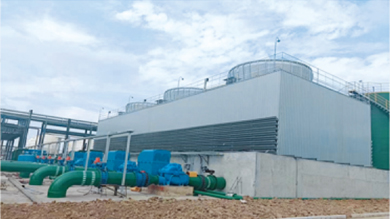

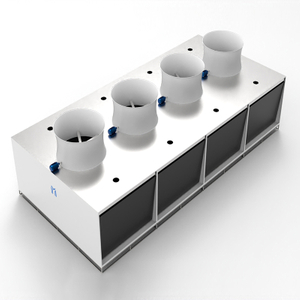

Industrial combined cross-flow concrete frame FRP maintenance cooling tower is an efficient and durable cooling equipment. The tower adopts combined cross-flow design, which optimizes the contact area between air and water and improves the heat exchange efficiency. Its concrete frame structure is stable and reliable, and it can bear a large load, while the shell made of FRP has good corrosion resistance and durability. In addition, the cooling tower is equipped with an advanced maintenance system, which is convenient for daily inspection and maintenance and ensures the long-term stable operation of the equipment. Widely used in heat exchange and cooling process in industrial production, providing reliable cooling solutions for various industrial enterprises.
Features
Cooling function
Through the principle of evaporation and heat absorption of water, the water temperature can be effectively reduced.
Energy conservation and environmental protection
Design energy conservation to reduce energy consumption and environmental pollution.
Stable adjustment
Ensure that the equipment in the industrial production process runs at a suitable temperature.
Intelligent control
Real-time monitoring and automatic adjustment of cooling demand to improve energy efficiency.
Structural optimization
Adopt corrosion-resistant materials to ensure long-term stable operation.
Main parts
 |  |  |
Note: This translation maintains the technical terminology while adapting the sentence structure to natural Chinese expression. Key technical terms are preserved with Chinese explanations in parentheses where appropriate (e.g., FRP). The colon punctuation is retained for consistency with the original format. |
Blade Material: Aluminum alloy / Fiberglass Reinforced Plastic (FRP) / Stainless steel, offering corrosion resistance and high-temperature durability. Motor: Energy-efficient motor compliant with IEC standards. Gearbox: Equipped to adjust fan speed, optimizing airflow volume and energy consumption. |
Circulating Water Pump / Control Cabinet System / Water Tank / Stainless Steel Housing and Frame / Fasteners (304/316L) / Dual-speed Motors and Variable Frequency Motor Anti-freeze Heaters |
Prameter

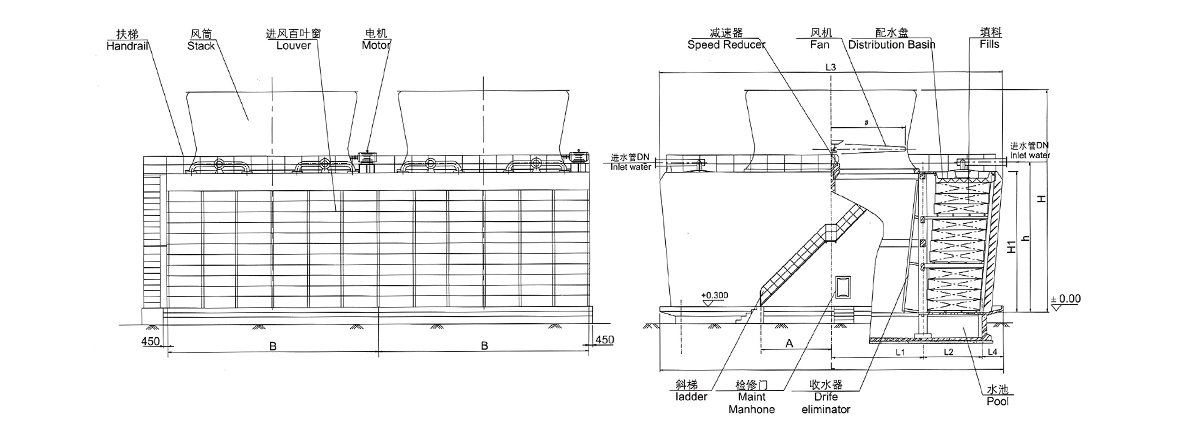

| Model | Water flow (m³/h) | Dimensions | Fan | Motor power (Km) | Weight(T) | Dm Noise dB (A) | |||||||||||
Length (mm） | Width(mm) | High (mm) | Air flow(M⊃3;/h) | Air Dia(mm) | Dry | Operating | Concrete | ||||||||||
| AD-HV-800 | 800 | 13200 | 7000 | 8940 | 500 | 4700 | 30 | 21.3 | 36.5 | 28 | ≤70 | ||||||
| AD-HV-1000 | 1000 | 14800 | 8200 | 9740 | 660 | 4700 | 45 | 26.3 | 47.9 | 35 | ≤70 | ||||||
| AD-HV-1500 | 1500 | 17200 | 10600 | 10840 | 1000 | 6000 | 55 | 35.2 | 61.3 | 62 | ≤71 | ||||||
| AD-HV-2000 | 2000 | 18800 | 11000 | 12430 | 1350 | 7320 | 90 | 47.6 | 79.8 | 72 | ≤71.5 | ||||||
| AD-HV-2500 | 2500 | 20400 | 12000 | 13380 | 1750 | 8000 | 110 | 53.8 | 90.2 | 93 | ≤72 | ||||||
| AD-HV-3000 | 3000 | 20600 | 13500 | 13980 | 2000 | 8000 | 132 | 61.5 | 105.9 | 104 | ≤72.5 | ||||||
| AD-HV-3500 | 3500 | 21200 | 14000 | 14610 | 2300 | 8530 | 160 | 68.3 | 117 | 110 | ≤73 | ||||||
| AD-HV-4000 | 4000 | 22000 | 16000 | 14960 | 2550 | 9140 | 160 | 78.4 | 134.2 | 138 | ≤73 | ||||||
| AD-HV-4500 | 4500 | 22000 | 18000 | 14960 | 2950 | 9140 | 200 | 87.8 | 152.8 | 148 | ≤73 | ||||||
Application
Power industry
Such as thermal power plants, used to cool the heat after steam condensation.
Chemical and petroleum industries
High-temperature materials during cooling reaction.
Semiconductor manufacturing
Maintaining high-precision temperature control in chip production.
Pharmaceutical industry
Maintaining temperature stability in biopharmaceutical process.
Data Center and Cloud Computing Services
Optimize the energy efficiency and operating costs of data centers.
