Product Description

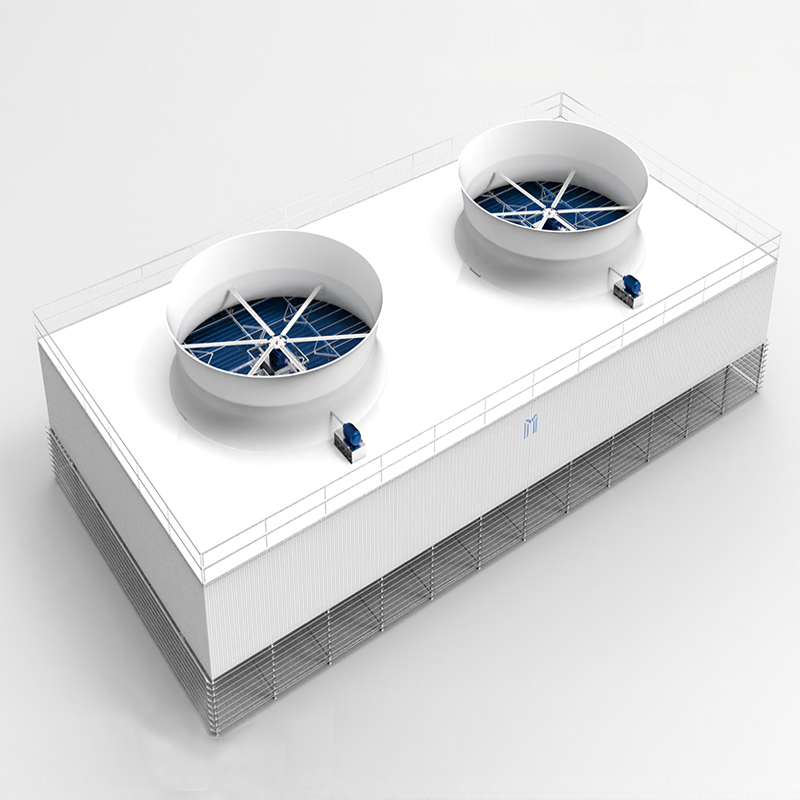

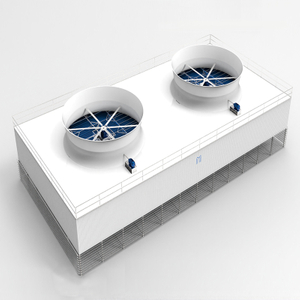

Industrial combined counterflow concrete frame FRP maintenance cooling tower is an efficient and durable cooling equipment. The tower adopts combined countercurrent design, and achieves more efficient heat dissipation effect by optimizing the water flow and air flow path. Its concrete frame structure is stable and reliable, and can bear large load and environmental impact. Glass fiber reinforced plastic material has excellent corrosion resistance, which can effectively resist chemical corrosion and bad weather conditions. In addition, the cooling tower has the advantages of simple maintenance and low operating cost, and is widely used in chemical industry, electric power, steel and other industrial fields, providing reliable cooling guarantee for various industrial equipment.
Features
Cooling function
Through the principle of evaporation and heat absorption of water, the water temperature can be effectively reduced.
Energy conservation and environmental protection
Design energy conservation to reduce energy consumption and environmental pollution.
Stable adjustment
Ensure that the equipment in the industrial production process runs at a suitable temperature.
Intelligent control
Real-time monitoring and automatic adjustment of cooling demand to improve energy efficiency.
Structural optimization
Adopt corrosion-resistant materials to ensure long-term stable operation.
Main Parts
 |  |  |
|
|
Circulating Water Pump / Control Cabinet System / Water Tank / Stainless Steel Housing and Frame / Fasteners (304/316L) / Dual-speed Motors and Variable Frequency Motor Anti-freeze Heaters. |

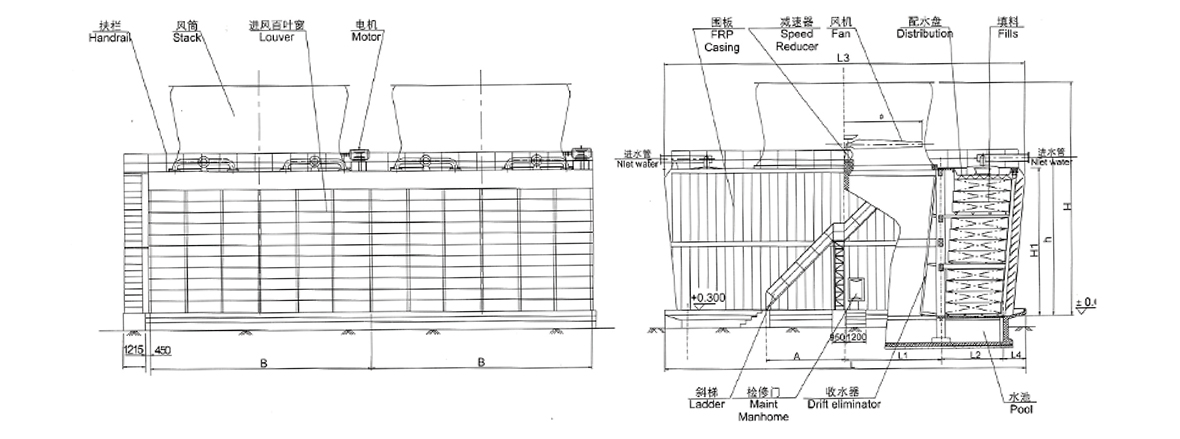

Prameter
| Model | Water flow(m³/h) | Dimensions | Fan | Motor power (Km) | Water Distribution | Other sizes(mm) | Weight(T) | Dm Noise dB (A) | ||||||||||||||||||||
| Width (mm) | High(mm) | Air flow (M⊃3;/h) | Air Dia(mm) | DN (mm) Inlet water pipe | Inlet high (mm) | Head Kpa | L0 | L1 | H1 | H2 | H3 | Dry | Operating | |||||||||||||||
| AD-NV-800 | 800 | 7800 | 9860 | 500 | 4700 | 30 | 2×250 | 5750 | 14 | 15600 | 3900 | 3200 | 7300 | 360 | 14.3 | 23.2 | ≤71 | |||||||||||
| AD-NV-1000 | 1000 | 9000 | 10510 | 660 | 4700 | 45 | 2×300 | 6300 | 15 | 18000 | 4500 | 3700 | 7900 | 410 | 20.6 | 32 | ≤72 | |||||||||||
| AD-NV-1500 | 1500 | 11000 | 12350 | 1000 | 6000 | 55 | 2×350 | 7150 | 15 | 22000 | 5500 | 4200 | 9200 | 450 | 32.2 | 49.2 | ≤73 | |||||||||||
| AD-NV-2000 | 2000 | 12800 | 13400 | 1350 | 7320 | 90 | 2×400 | 7250 | 15 | 25600 | 6400 | 4500 | 9750 | 450 | 43.9 | 67.5 | ≤74 | |||||||||||
| AD-NV-2500 | 2500 | 13500 | 13700 | 1750 | 8000 | 110 | 2×400 | 7250 | 15 | 27000 | 6750 | 4500 | 9750 | 450 | 48.4 | 7712 | ≤74 | |||||||||||
| AD-NV-3000 | 3000 | 15000 | 14300 | 2000 | 8000 | 132 | 2×450 | 7550 | 16 | 30000 | 7500 | 4700 | 10300 | 500 | 55.3 | 91.7 | ≤75 | |||||||||||
| AD-NV-3500 | 3500 | 16000 | 14600 | 2300 | 8530 | 160 | 2×500 | 7600 | 18 | 32000 | 8000 | 4900 | 10600 | 500 | 60.2 | 99.2 | ≤75 | |||||||||||
| AD-NV-4000 | 4000 | 17000 | 15350 | 2550 | 9140 | 160 | 2×500 | 7800 | 18 | 34000 | 8500 | 5000 | 11000 | 550 | 66.8 | 116.1 | ≤76 | |||||||||||
| AD-NV-4500 | 4500 | 18000 | 15650 | 2950 | 9140 | 200 | 2×600 | 8100 | 20 | 36000 | 9000 | 5000 | 11300 | 550 | 74.5 | 130.1 | ≤76 | |||||||||||
| AD-NV-5000 | 5000 | 19000 | 16550 | 3150 | 9750 | 220 | 2×700 | 8300 | 20 | 38000 | 9500 | 5200 | 12000 | 550 | 84.2 | 146 | ≤76 | |||||||||||

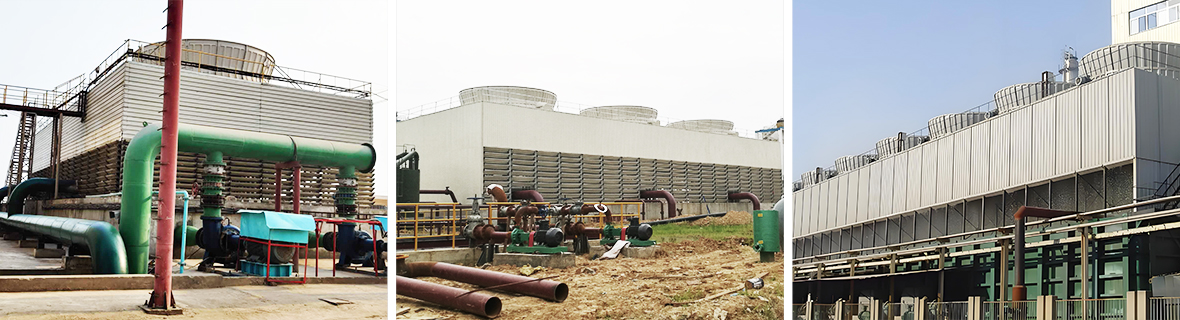

Application

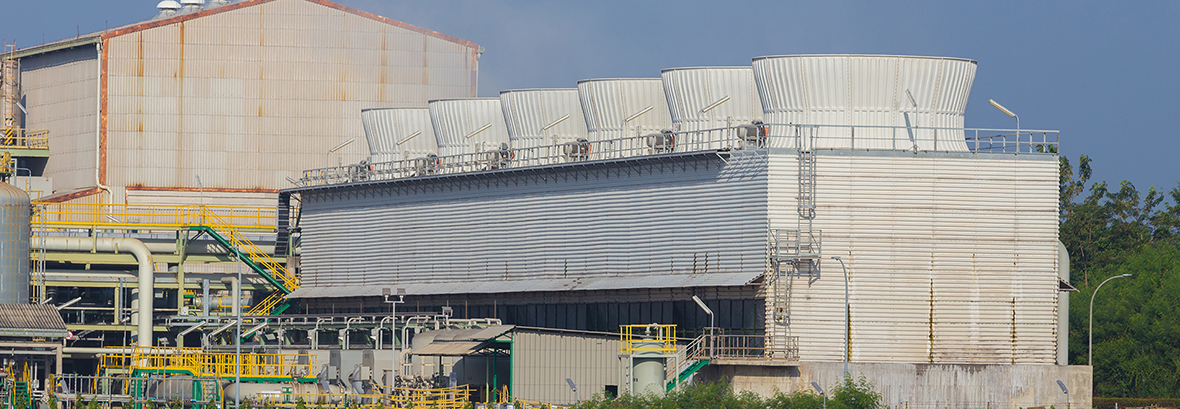

Power industry
Such as thermal power plants, used to cool the heat after steam condensation.
Chemical and petroleum industries
High-temperature materials during cooling reaction.
Semiconductor manufacturing
Maintaining high-precision temperature control in chip production.
Pharmaceutical industry
Maintaining temperature stability in biopharmaceutical process.
Data Center and Cloud Computing Services
Optimize the energy efficiency and operating costs of data centers.
