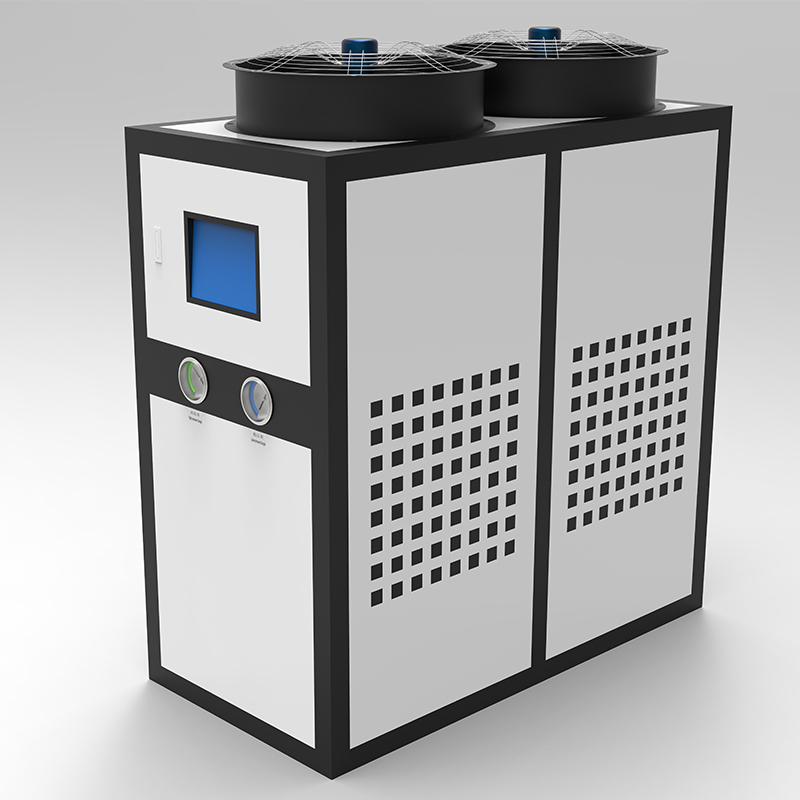

Air Cooled Chiller

The air-cooled chiller adopts high-efficiency air cooling technology and does not require an external cooling water system. It directly dissipates heat through ambient air and has the characteristics of easy installation, space saving, and stable operation. This model is equipped with an intelligent control system that accurately adjusts the cooling capacity, is energy-saving and environmentally friendly, and is widely used in commercial central air conditioning, industrial cooling, data centers, and precision environmental control fields to meet the cooling needs of different scenarios and reduce user operating costs.

Mach cooling can provide customers with a variety of cooling equipment and processes, which mainly include closed-circuit cooling towers, open cooling towers, air coolers, and industrial water tanks. At the same time, it produces and operates various specifications of cooling tower packing, cooling tower fans, cooling tower motors,reducers, and other fiberglass cooling tower accessories. It also undertakes cooling tower renovation and maintenance services. The company's products can be widely applied in areas such as high-speed railways, precision air conditioning, metallurgy and forging, oil and power, chemical and pharmaceutical industries, and heat treatment.

Air Cooled Chiller Video

Air Cooled Chiller Principle of Operation

The air-cooled chiller achieves cooling through a refrigeration cycle system, and its core working principle is as follows:

• Refrigerant cycle

• Evaporative heat absorption: Liquid refrigerant absorbs the heat of chilled water in the evaporator, evaporates into low-temperature and low-pressure gas, and cools the chilled water (usually outputting 7-12 ℃ cold water).

• Compression heating: The compressor compresses low-temperature gaseous refrigerant into high-temperature and high-pressure gas, which is then transported to the condenser.

• Condensation heat dissipation: High temperature refrigerant is forced to ventilate and dissipate heat through a fan in the condenser, condensing into high-pressure liquid.

• Throttling and pressure reduction: The expansion valve throttles and reduces the pressure of the high-pressure liquid refrigerant, which then re enters the evaporator to complete the cycle.

• Air cooling system

By using an axial flow fan to draw ambient air into the condenser, the refrigerant heat is directly carried away without the need for a cooling tower or external water source, and the heat dissipation efficiency is affected by the ambient temperature.

Air Cooled Chiller Feature

• Overload protection: The compressor comes with built-in overload protection relay

• Fault alarm:Chinese and English display panel with built-in fault alarm function

• Energy saving and environmental protection: pre-set temperature according to demand, automatic start stop, greatly reducing users' electricity consumption

• Low noise: The imported Panasonic compressor runs very stably, with a noise level 5% lower than its peers

• Strong heat dissipation efficiency: Different cross-sectional areas between capillaries with a diameter less than 1mm and copper pipes are used to instantly amplify the refrigerant, thereby achieving rapid cooling effect

• Efficient and stable: Using Panasonic compressors from Japan, greatly improving compression efficiency, with an efficiency about 20% higher than miscellaneous compressors on the market.

Air Cooled Chiller Main Parts

Electrical control cabinet: Schneider brand overload protector from Germany, equipped with a comprehensive electronic protection system, high and low voltage abnormal protection device, and electronic time delay for compressor start-up

High efficiency water tank evaporator: Equipped with automatic water replenishment and water level protection devices, it eliminates the need for an expansion water tank during engineering installation, making it easy to install and maintain quickly. It is also suitable for special occasions such as large temperature differences and small flow rates.

Water pump: High efficiency, low energy consumption, large flow rate, high head, low noise, long service life, percentage pure copper coil, can be customized according to customer needs for caliber and power, as well as customized stainless steel water pump or enlarged water pump.

Condenser: Shell and tube condenser, with large heat dissipation, high heat transfer efficiency, not easy to block, built-in external threaded high-efficiency copper tube, high-strength sealing structure, accelerates cooling speed. Ensure good heat exchange efficiency.

Air Cooled Chiller Prameter

Air Cooled Chiller Factory Show

Air Cooled Chiller Certificate

Air Cooled Chiller Application

Air cooled chillers dissipate heat and cool directly through air, without the need for a cooling water system. They are widely used in shopping malls, factories, data centers, and other scenarios, and have the characteristics of easy installation, water saving, and space saving; Especially suitable for water scarce areas or small and medium-sized refrigeration needs, it is a flexible and efficient cooling solution. Its modular design allows for rapid deployment, but in high-temperature environments, attention should be paid to optimizing heat dissipation efficiency.

Air Cooled Chiller Project Performance

Air Cooled Chiller FAQ

1. Q: What is the difference between air-cooled chillers and water-cooled chillers?

A: Air coolers dissipate heat through fans without the need for cooling towers, making installation simple but slightly inefficient; Water coolers require a cooling water system, which is more efficient but complex to maintain, making them suitable for large-scale projects.

2. Q: What scenarios are air-cooled chillers suitable for?

A: Suitable for small and medium-sized refrigeration needs such as shopping malls, small factories, data centers, and communication base stations, especially suitable for environments with water scarcity or limited space.

3. Q: Does the air-cooled machine need an additional cooling tower?

A: No need, the air cooler directly dissipates heat through ambient air, eliminating the need for cooling towers and water pump systems.

4. Q: Will high temperature weather affect the effectiveness of wind turbines?

A: Yes, the heat dissipation efficiency decreases when the ambient temperature exceeds 35 ℃. It is recommended to choose a high-temperature resistant model or increase ventilation measures.

5. Q: Is the air cooler noisy?

A: The operating noise mainly comes from the compressor and fan, usually ranging from 65-75 decibels. Low noise models can be selected or soundproof covers can be installed.

6. Q: How often does the air-cooled machine need maintenance?

A: It is recommended to clean the dust on the condenser fins every quarter and check the refrigerant and circuit every year to ensure heat dissipation efficiency.

7. Q: Do we need antifreeze in winter?

A: If operating in a low-temperature environment, it is necessary to add antifreeze or install heating belts to prevent frozen water from freezing and damaging pipelines.

8. Q: Does the air-cooled machine consume high power?

A: Slightly higher than water-cooled machines, but eliminates the energy consumption of cooling towers and water pumps, and the overall electricity cost needs to be evaluated comprehensively.

9. Q: How to choose a suitable air-cooled model?

A: Select based on cooling capacity (kW/RT), ambient temperature, and noise requirements, and reserve a margin of 10% -20% to cope with peak loads.
