Mechanical Draft Cooling Tower Working Principle

A mechanical draft cooling tower is a type of cooling tower that uses mechanical means (fans) to move air through the tower and enhance heat transfer between the water and air.

Here’s the mechanical draft cooling tower working principle explained step by step:

1. Mechanical Draft Cooling Tower Working Principle - Hot Water Inlet

Warm water from an industrial process, HVAC system, or power plant enters the cooling tower through pipes.

The hot water is distributed evenly across the fill media (also called packing) by spray nozzles or distribution basins.

2. Mechanical Draft Cooling Tower Working Principle - Fill Media (Heat Exchange Surface)

The fill increases the surface area and residence time of water, breaking it into small droplets or thin films.

This maximizes contact between water and air.

3. Mechanical Draft Cooling Tower Working Principle - Air Movement (Created by Fans)

Unlike natural draft towers that rely on buoyancy, mechanical draft towers use fans to force or draw air through the tower:

Forced Draft:

Fans push air into the tower at the base.

Induced Draft:

Fans are located at the top, pulling air upward through the fill.

4. Mechanical Draft Cooling Tower Working Principle - Heat Transfer Mechanism

Two processes cool the water:

Evaporation (main mechanism):

A small portion of the water evaporates.

This evaporation removes heat from the remaining water (latent heat of vaporization).

Sensible Heat Transfer:

Direct heat exchange occurs between air and water due to temperature difference.

5. Mechanical Draft Cooling Tower Working Principle - Cooling Effect

As hot water gives up heat, it becomes cooler.

The cooled water collects in the **cold water basin** at the bottom of the tower.

6. Mechanical Draft Cooling Tower Working Principle - Air Discharge

The warm, moist air (containing evaporated water vapor) is expelled into the atmosphere through the top of the tower.

7. Mechanical Draft Cooling Tower Working Principle - Water Recirculation

The cooled water is pumped back into the process or HVAC system.

A small portion of water is lost as **drift** (droplets carried away with exhaust air) and **evaporation**.

Mechanical Draft Cooling Tower Working Principle - Key Points:

Relies on fans for airflow (mechanical draft).

Cooling occurs mainly by evaporation, assisted by sensible heat transfer.

More compact than natural draft towers and can be installed indoors or outdoors.

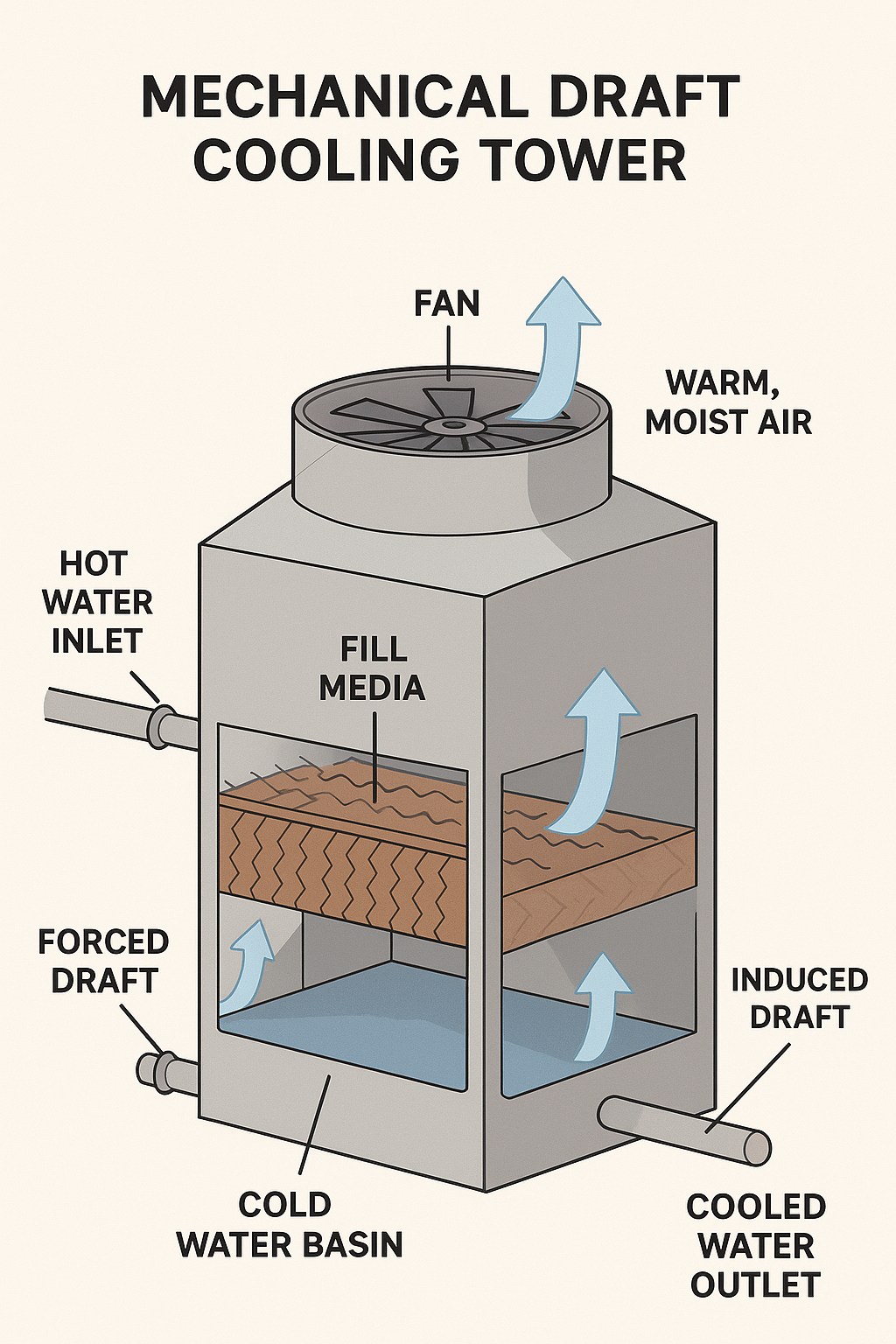

Here is a labeled diagram of a mechanical draft cooling tower (forced vs induced draft) to visualize the working principle.
