MC Dry Cooler Radiator: Professional Air Cooling Heat Exchanger

Introduction to MC Dry Cooler

A dry cooler (also known as a dry cooler) is a closed, non water consuming air cooling device that uses fluid inside the tube and air outside the tube for heat exchange, without relying on water evaporation for heat dissipation throughout the process. It is widely used in industrial and data centers for waste heat discharge.

Working Principle of MC Dry Cooler

Similar to car radiators, for sensible heat transfer (without evaporation or phase change):

The hot fluid (water/ethylene glycol solution) is pumped into the finned tube bundle.

Axial flow/EC fans force air to sweep across the fins, taking away heat from the pipe wall.

After the fluid inside the tube cools down, it flows back to the process equipment, completing a closed cycle.

Characteristics: The fluid does not come into direct contact with air, only transfers heat without mass transfer, and there is no evaporation of water.

Core Structure of MC Dry Cooler

Heat exchange core:

Copper/stainless steel tube+aluminum fins, high-density arrangement, maximizing heat exchange area.

Fan system:

Top/side mounted EC variable frequency fan, adjustable wind speed, energy-saving and noise reduction.

Frame shell:

Galvanized steel/anti-corrosion alloy, supporting and protecting internal components, regulating airflow.

Pipeline interface:

Inlet and outlet, valve, flange, ensuring medium circulation and sealing

Main Advantages of MC Dry Cooler

Ultimate water conservation:

Zero water consumption under standard operating conditions, no evaporation or floating water, suitable for water scarce areas.

Environmental safety:

No white mist, no Legionella risk, no need for water treatment agents.

Easy maintenance:

The closed system is not prone to scaling and only requires regular cleaning and inspection of the fan.

Reliable antifreeze:

Can be filled with ethylene glycol antifreeze, which is not easy to freeze and crack in winter.

Stable operating conditions:

Unaffected by air humidity, stable operation in high temperature and high humidity environments.

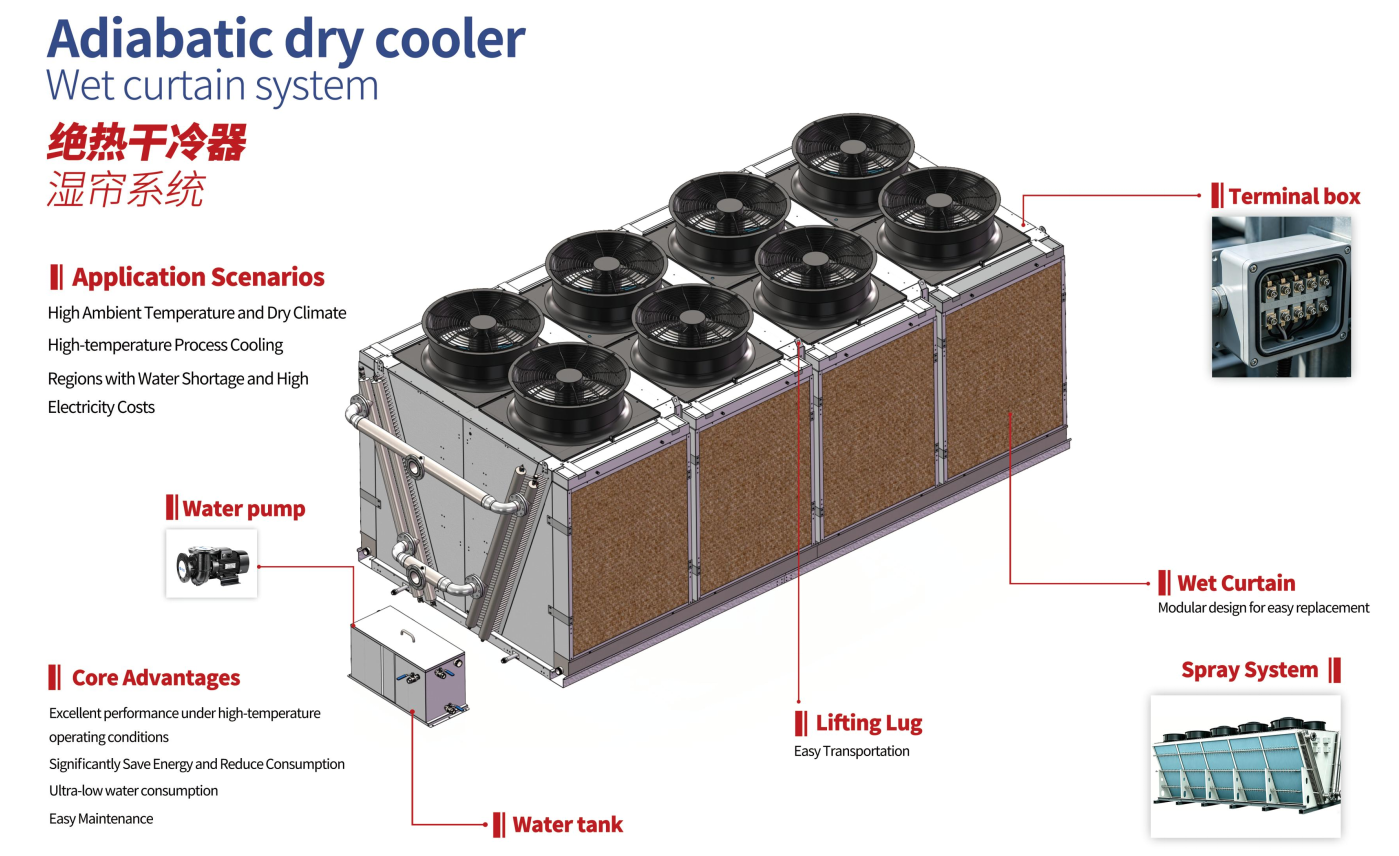

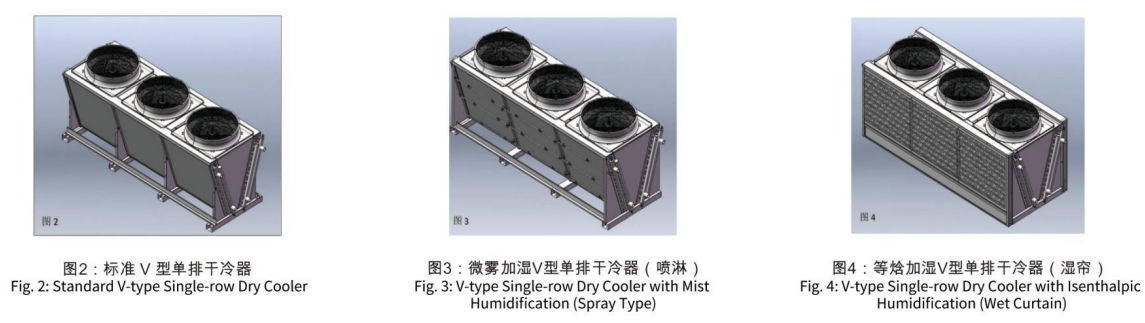

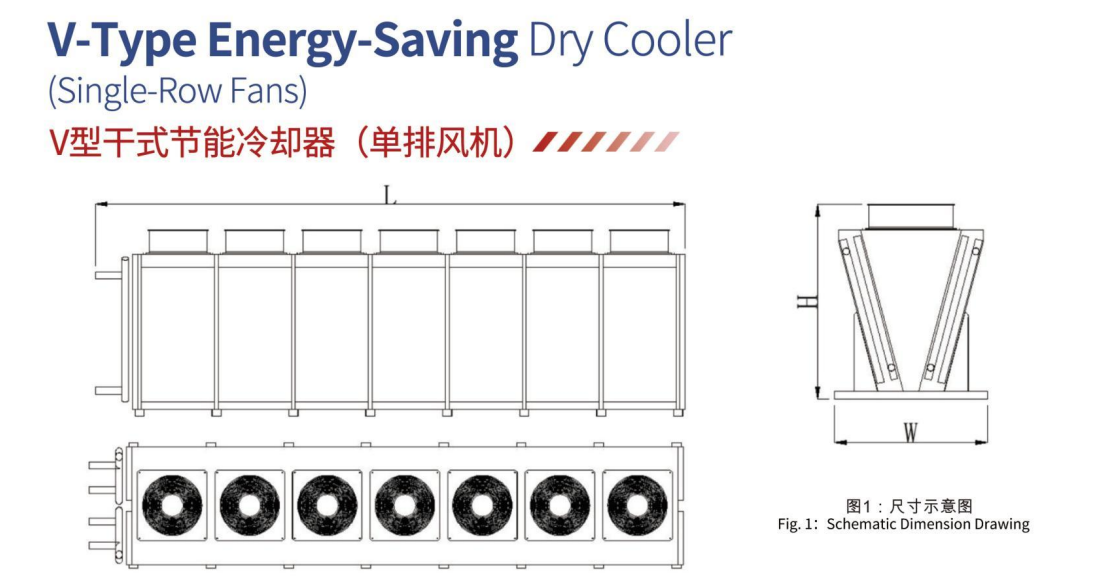

Structure Drawing

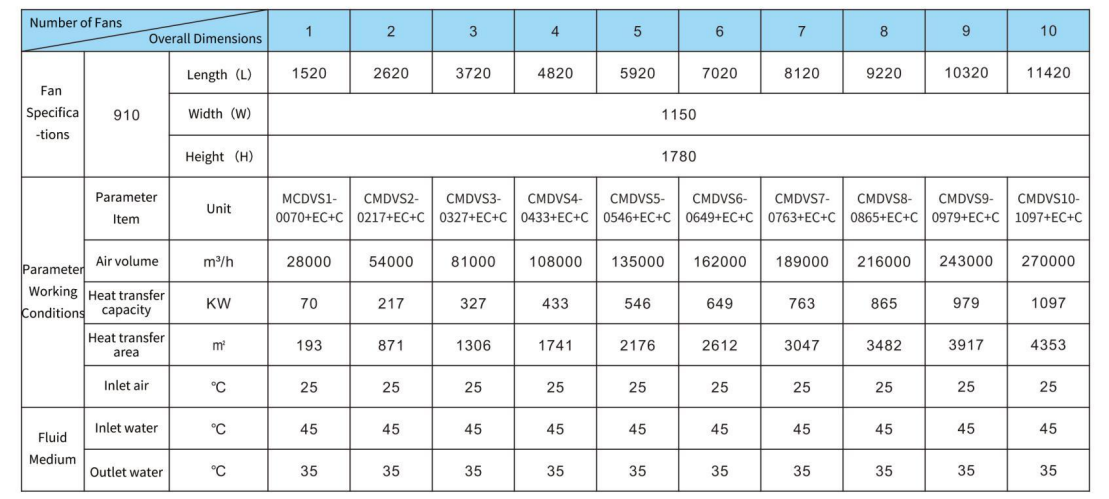

Parameter

Application scenarios of MC Dry Cooler

Industry:

Cooling of injection molding, power generation, compressors, smelting, chemical and other equipment.

Data center:

Natural cooling of IT equipment waste heat, significantly energy-saving.

Air conditioning and refrigeration:

Machine room air conditioning, heat pump unit, condensation and heat dissipation Tiktok encyclopedia.

Special environment:

Water shortage, strict environmental control, and extremely cold regions in winter.

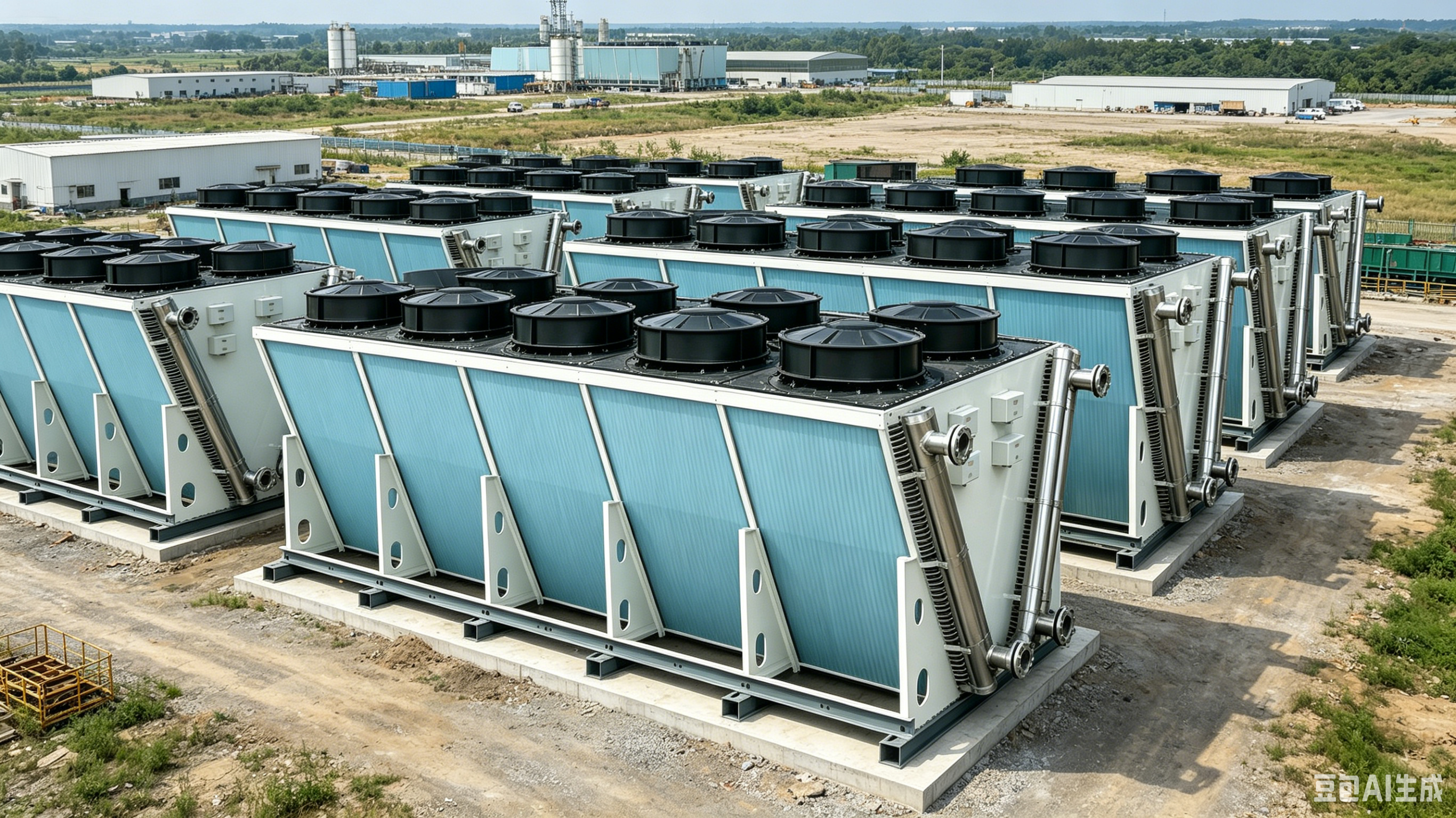

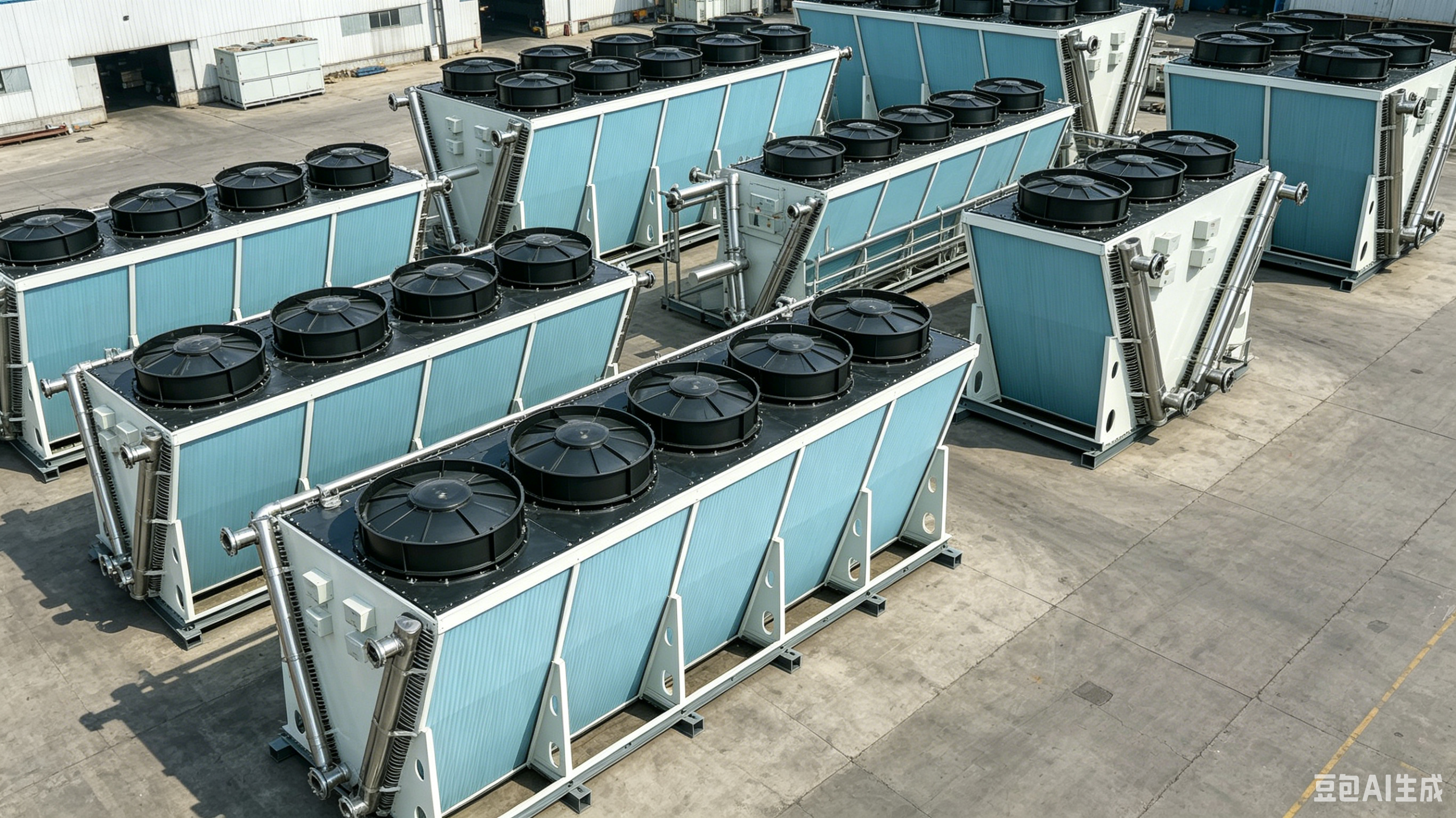

Our Case
